SPX3206Z1VSPE Hayward Power End Assembly For SP3206VSP, W3SP3206VSP, SP3206VSPBH, SP32950VSP TriStar® VS G3 Variable Speed Pumps
SPX3206Z1VSPE Hayward® TriStar® VS G3 Pump Motor Drive Power End Manual

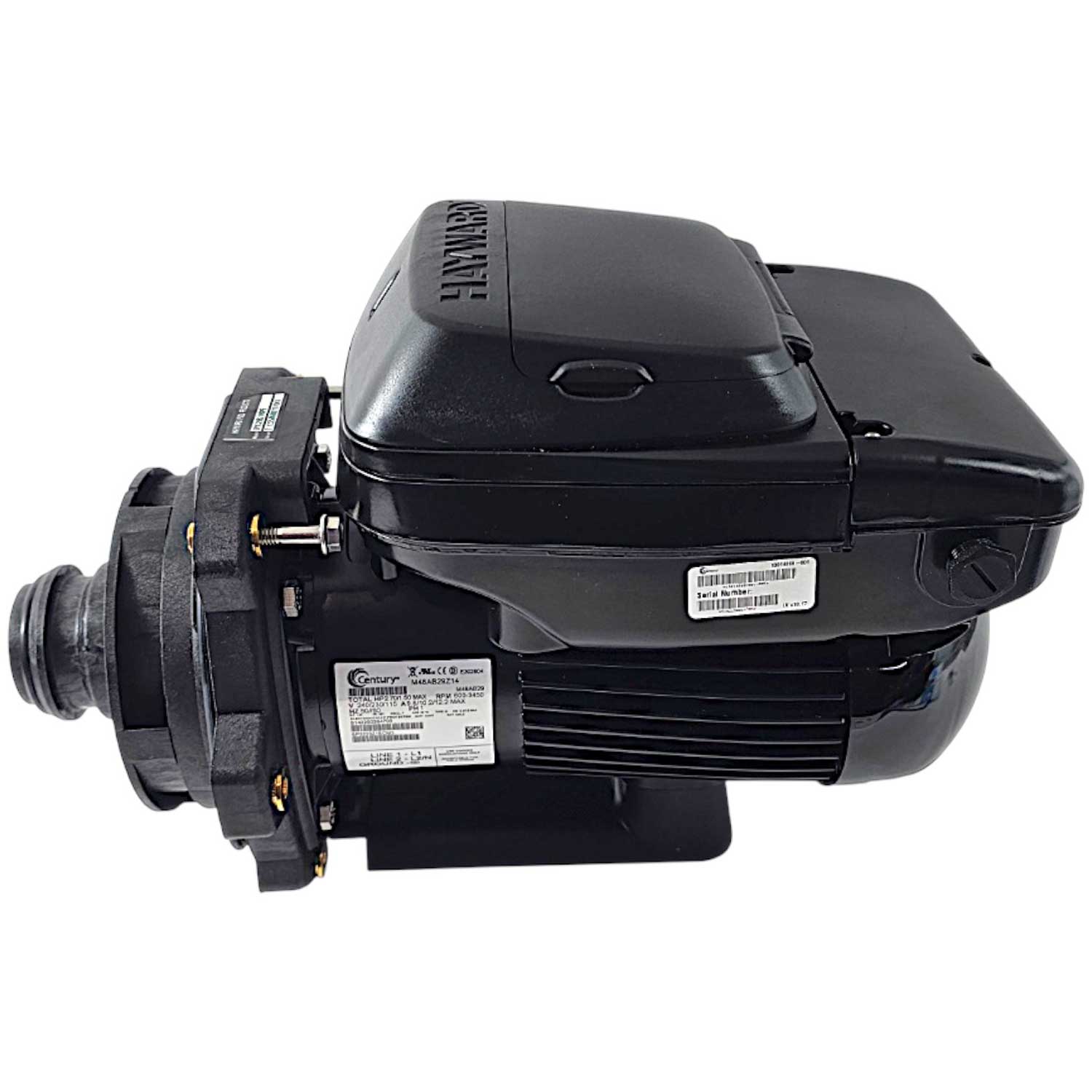

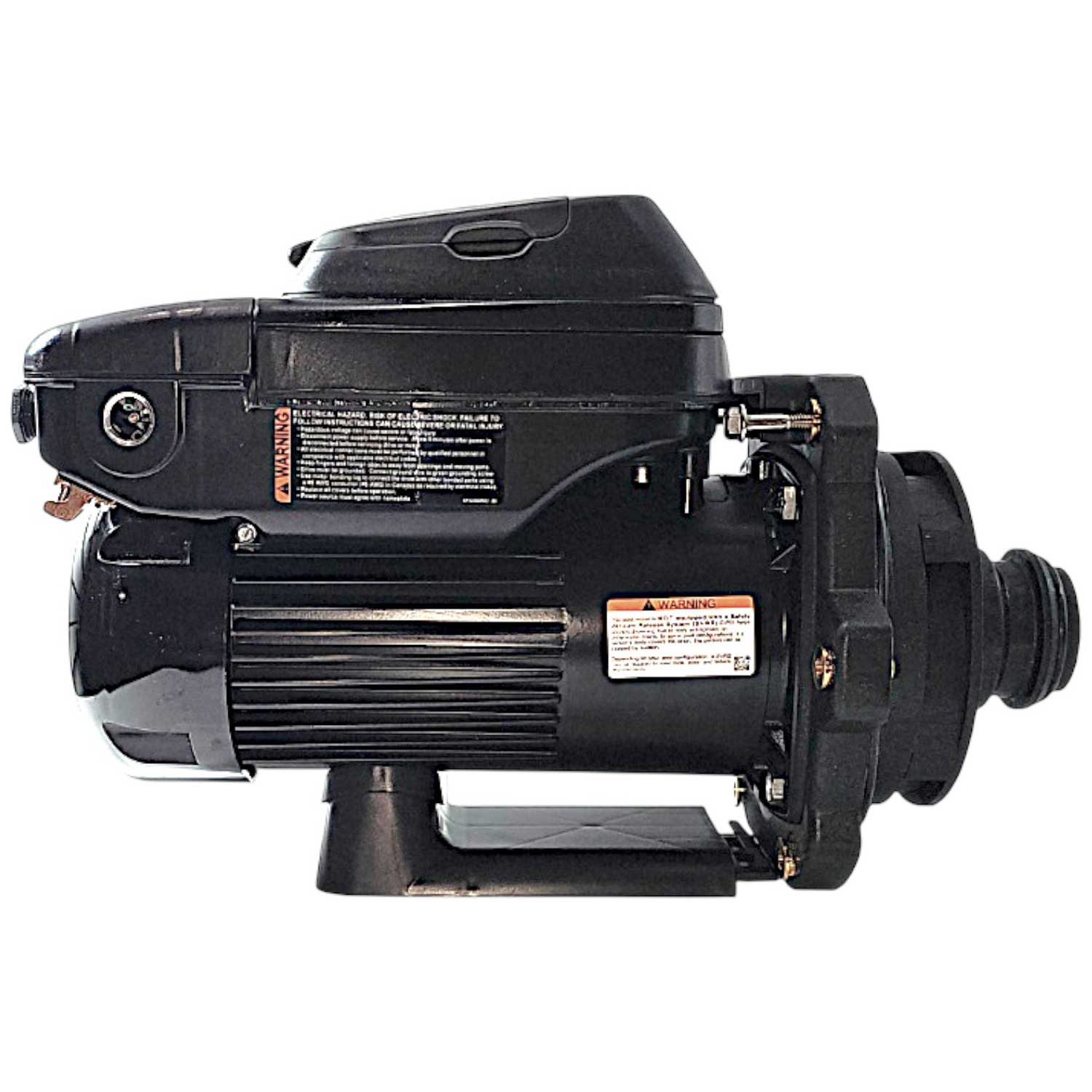

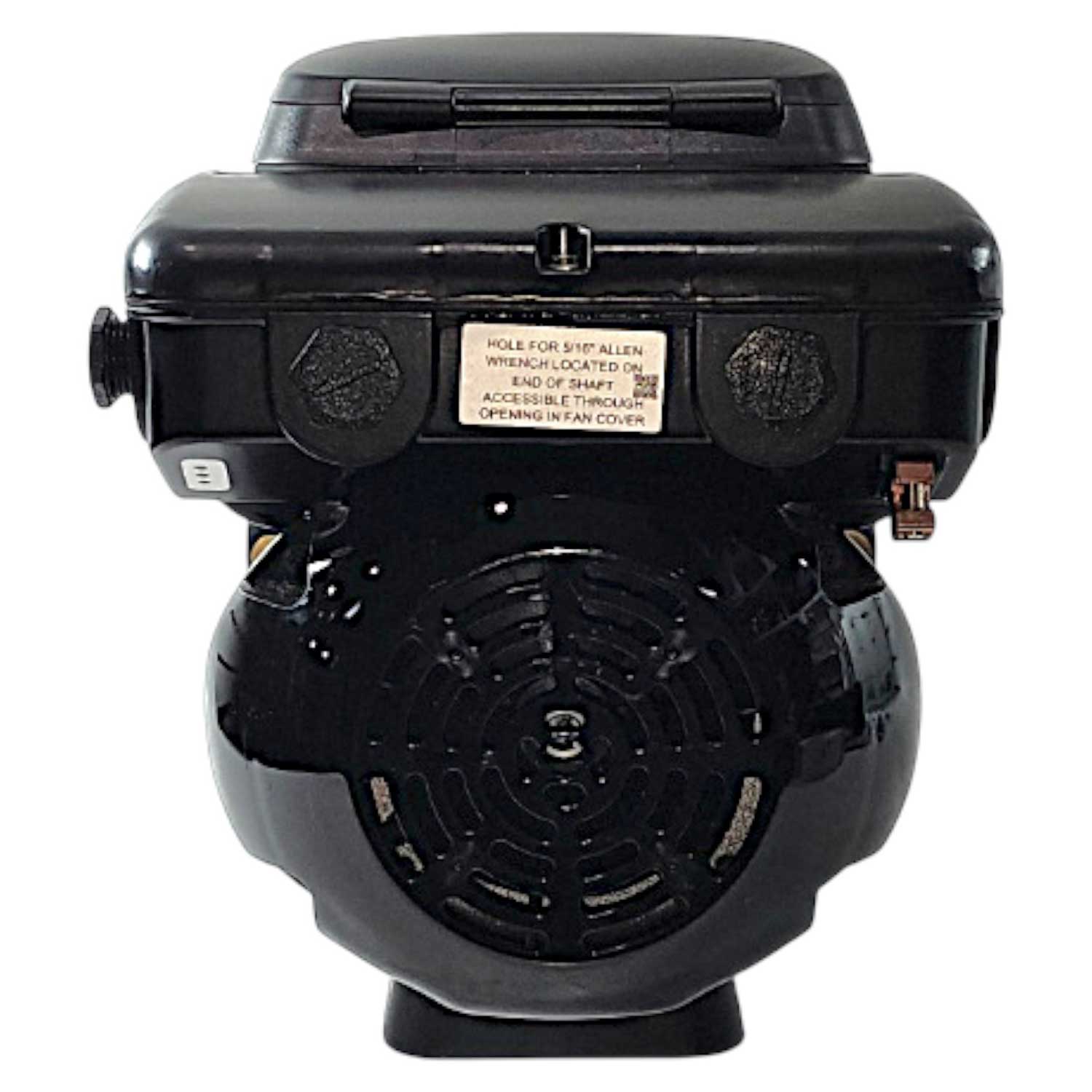

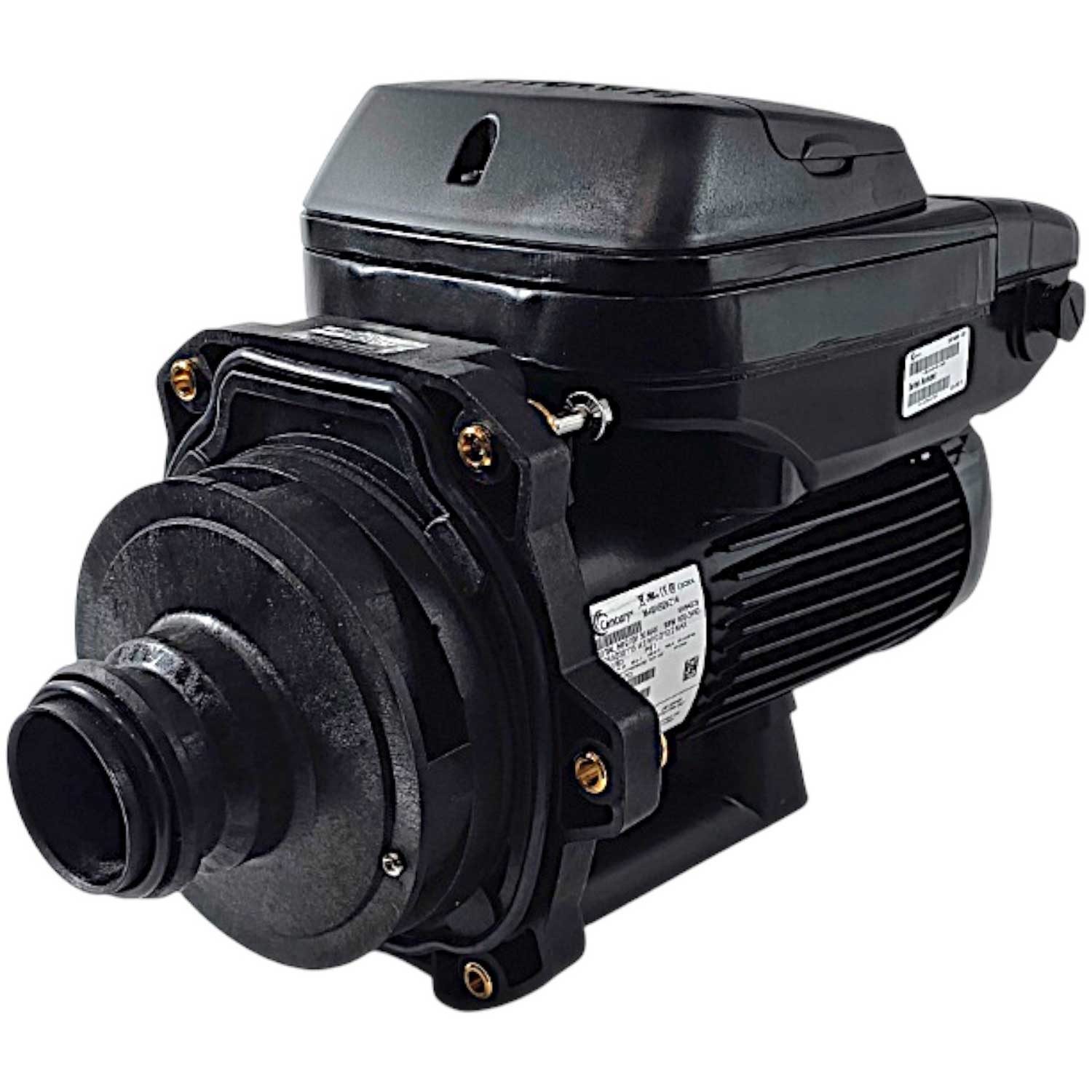

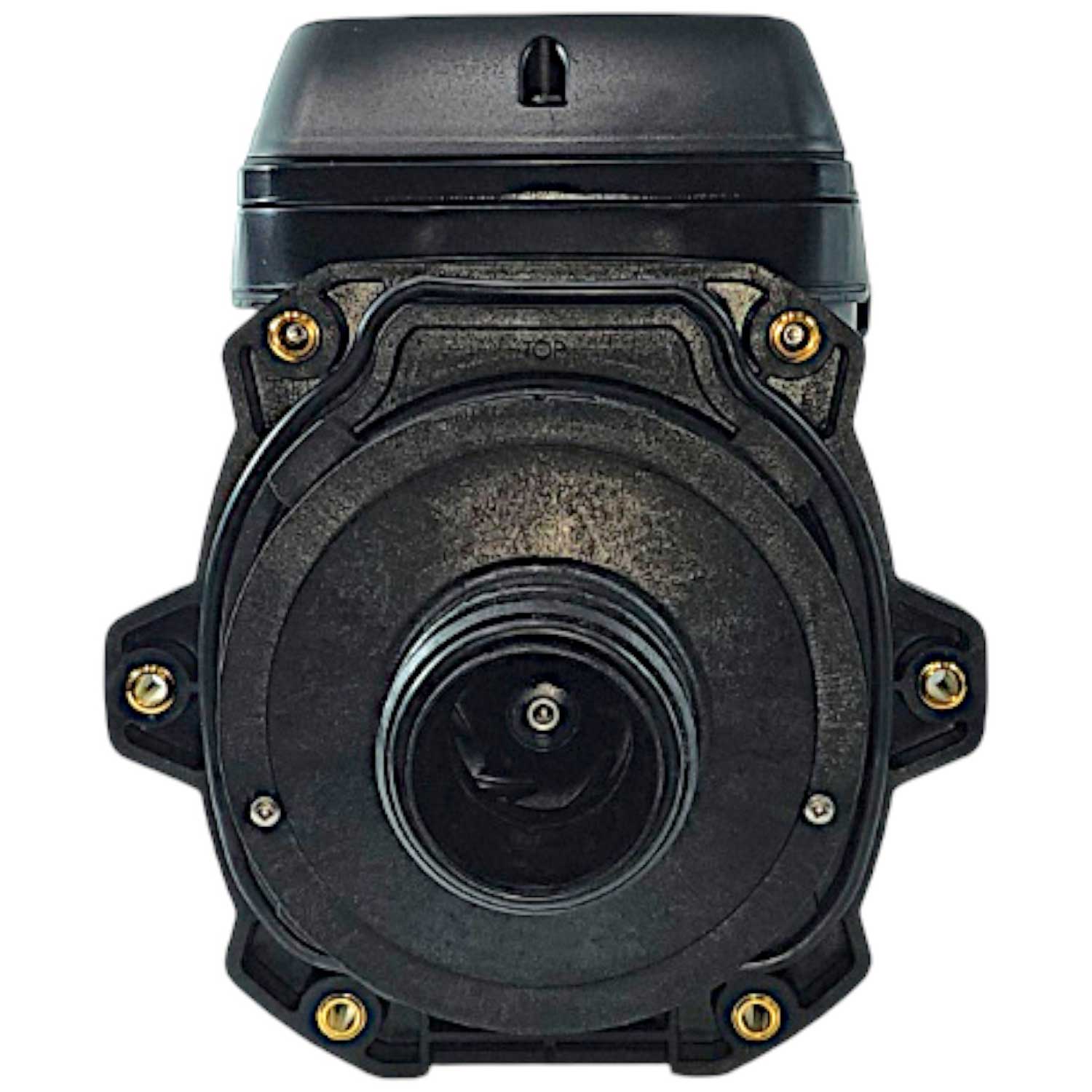

The Hayward SPX3206Z1VSPE is the genuine OEM Power End Assembly designed for the Hayward TriStar® Variable-Speed Pump (SP3206VSP series). This replacement assembly includes the motor, drive, and essential internal components, ensuring your pump continues to operate with maximum efficiency, reliability, and energy savings.
Key Features
- Complete Power End Assembly – Includes the motor, digital drive, and housing components (#7–15, 2 ea. #16–17, #18, #24, and motor assembly) for straightforward replacement.
- Variable-Speed Technology – Uses a totally enclosed, permanent magnet motor with advanced hydraulic design, delivering superior energy efficiency and cost savings.
- Programmable Operation – Features an integrated digital control interface with up to 8 customizable timers and 4 preset speeds for flexible scheduling.
- Quiet Performance – Operates at lower RPMs for reduced noise, improved filtration, and longer equipment life.

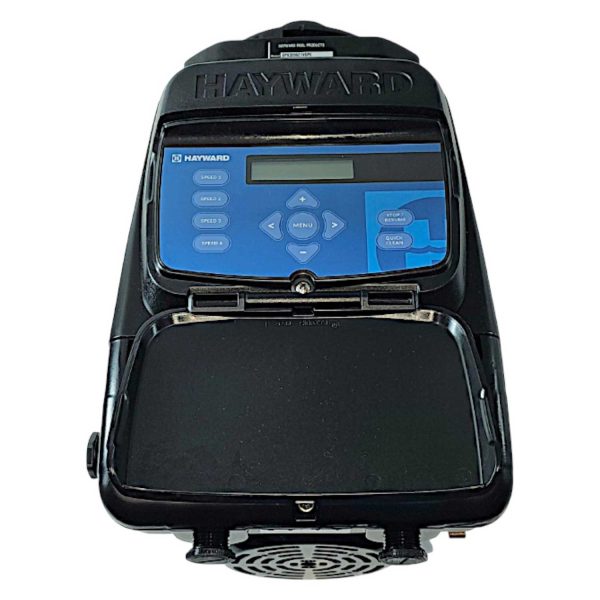

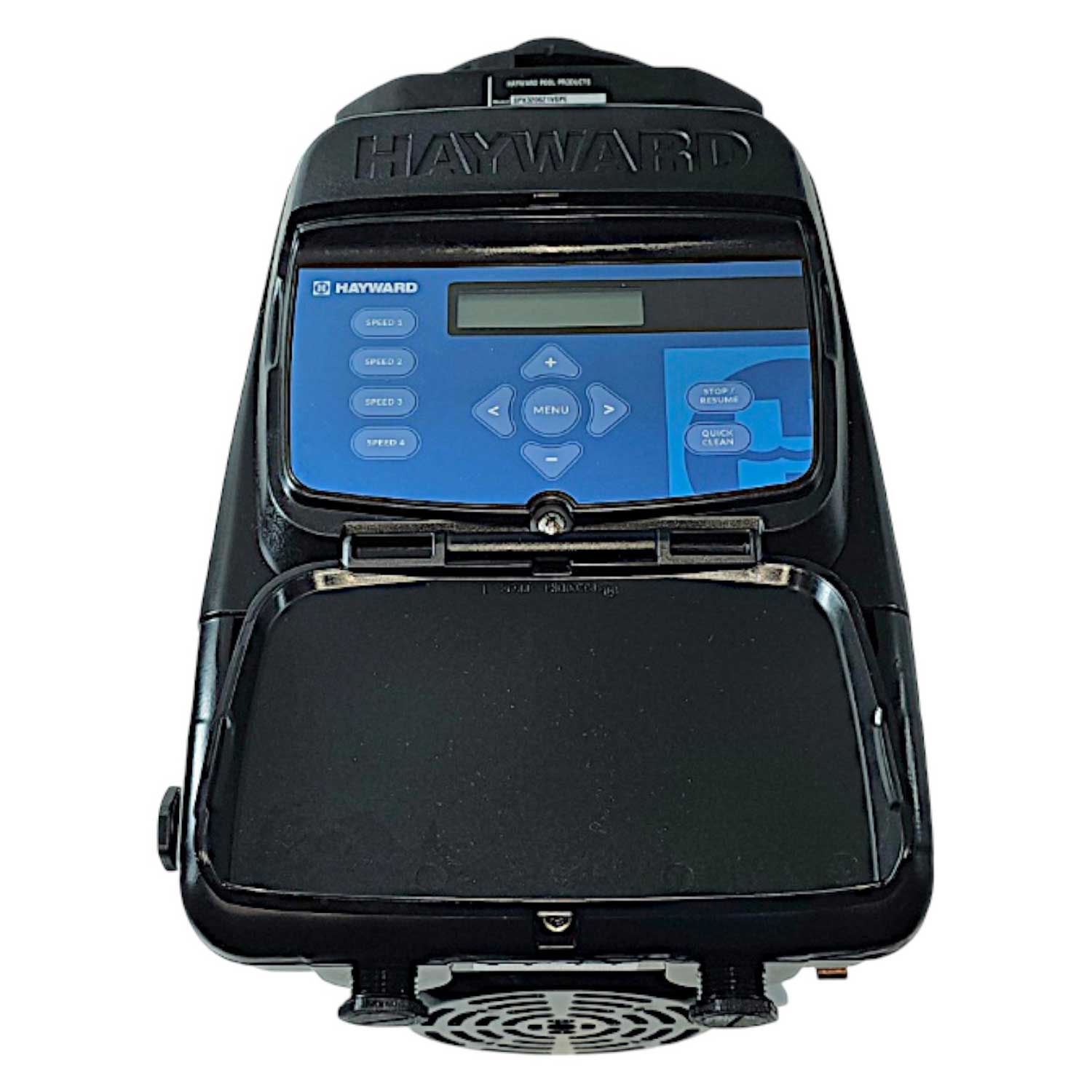

- Digital Control Interface – Can be mounted on the pump in multiple orientations or wall-mounted using the optional kit (SP3200DRKIT).
- Protection & Safety – Built-in safeguards against overheating, voltage fluctuations, and freezing conditions.
- OEM Reliability – Genuine Hayward replacement part ensures long-term durability and maintains manufacturer warranty.
SPX3206Z1VSPE Compatibility
-
Hayward TriStar® Variable-Speed Pumps:
- SP3206VSP
- W3SP3206VSP
- SP3206VSPBH
- SP32950VSP
-
Also compatible with Hayward automation systems including OmniLogic™, ProLogic®, ECommand®, OmniHub®, and OmniPL.
SPX3206Z1VSPE Technical Highlights

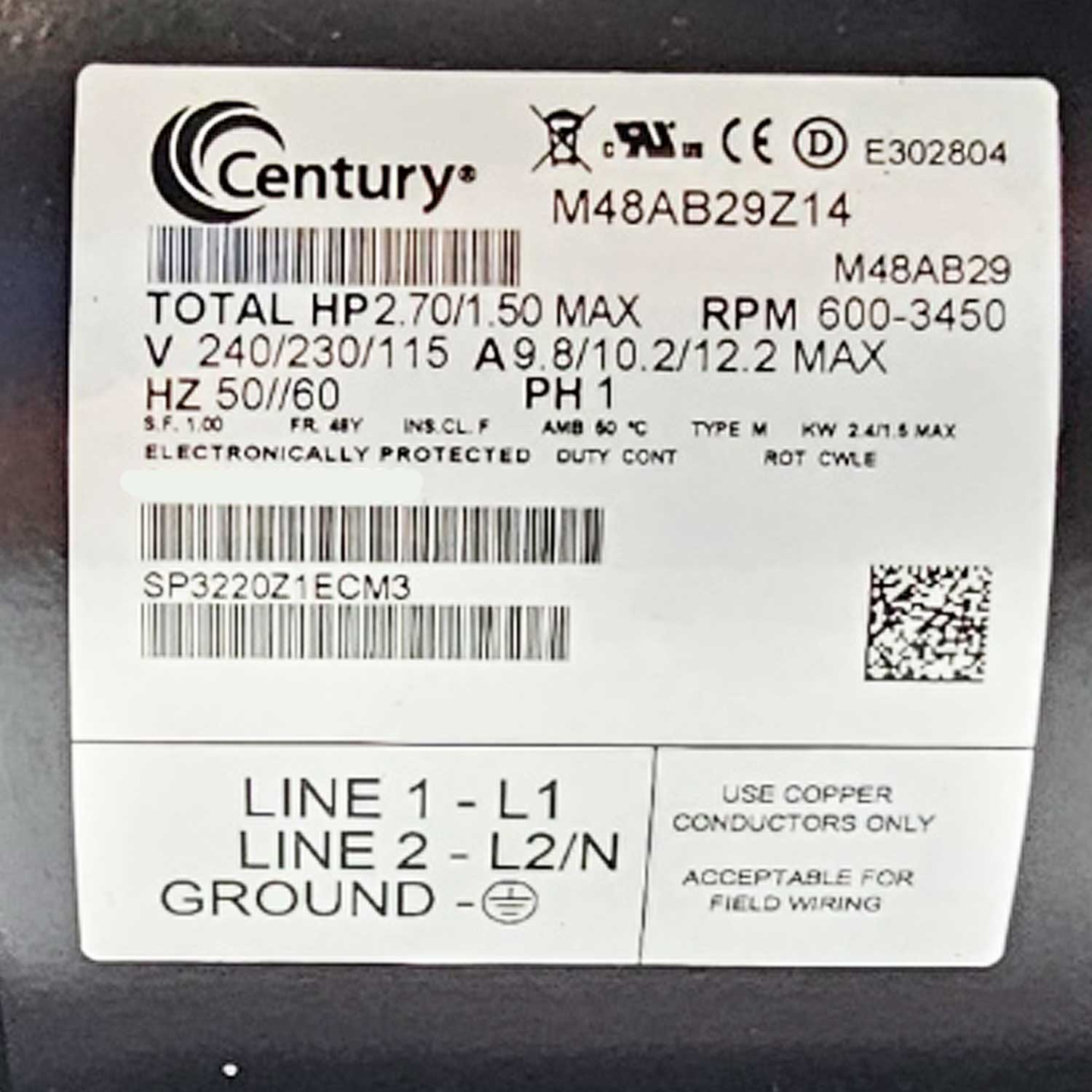

- Total Horsepower: 2.70 THP
- Programmable Speeds: 8 customizable speeds + 4 presets
- Electrical: 115/230V, single phase (refer to motor nameplate for specifics)
- Energy Efficient: Meets DOE regulations for pool pump efficiency
- Optional Models:
- SPX3206Z1VSPEVR – with Safety Vacuum Release System (SVRS)
Why Choose the SPX3206Z1VSPE?
This assembly restores your Hayward TriStar® VS pump to factory performance, protecting your investment while ensuring optimal energy savings. Non-genuine parts may void warranty or reduce efficiency
