Jandy DEL & DEV DE Filter Parts

For unsurpassed water clarity choose Jandy Diatomaceous Earth Filters. The Jandy DEV filters extra large capacity extend cleaning cycles and reduce energy usage. Our easy-grip tank handles make installation and cleaning easy. One-of-a-kind pressure gauge/air release valve with built-in water saving Clean/Dirty indicator accurately tells you when the filter requires cleaning. Jandy DEL filters are discontinued, but most parts are interchangeable between DEV & DEL series.

1	R0357100	DEV/DEL Handle Assembly w/ Hardware (set of 2)
2	R0359900	DEV/DEL Handle Hardware (set of 4)
3	R0357200	DEV/DEL Gauge/Air Release Assembly
4	R0569600	DEV Pressure Gauge
	R0359600	DEL Pressure Gauge
5	R0552000	DEV/DEL Tank Adapter w/O-ring
6	R0357300	Tank Lid DEV60
	R0554700	Tank Lid DEV48
7	R0359700	DEV/DEL Top Spacer for DE Grids
8	R0405100	DEV48/60 Spacer, Large Filter
9	R0358700	DEV/DEL Breather Tube Assembly
10	R0359000	DEV/DEL Manifold Assembly
11	R0359300	DEV/DEL 60 Tie Rod w/Knob & Lock Nuts
	R0554800	DEV/DEL 48 Tie Rod w/Knob & Lock Nuts
12	R0357400	DEV/DEL Tank Clamp Ring w/Knob Assembly
13	R0357500	DEV/DEL Clamp Ring Assembly w/Threaded Rod and Retainer
14	R0357800	DEV/DEL Tank O-ring
15
	R0555100	DEV/DEL Outlet Tube/Elbow Assembly w/O-rings
16	R0358400	DEV/DEL Inlet Elbow w/O-ring
17	R0359500	DEV/DEL DE Grid Support
18	R0359100	DEV/DEL 60 DE Grid, Full Size (7 required)
	R0555000	DEV/DEL 48 DE Grid, Full Size (7 required)
19	R0359200	DEV/DEL 60 DE Grid, Short Span, (1 only)
	R0554900	DEV/DEL 48 DE Grid, Short Span, (1 only)
20	R0359400	DEV/DEL Tie Rod Knob
21	R0405200	DEV/DEL Ring, Retaining
23	R0466500	DEV Bottom Assy, Universal Unions
24	R0465600	DEV Bulkhead Assembly with O-ring
	R0358200	DEL Bulkhead Assembly with O-ring
26	R0461800	DEV Universal Half Unions (set of 4) and Drain Plug Cap (not shown)
	R0358800	DEL Filter Drain Plug

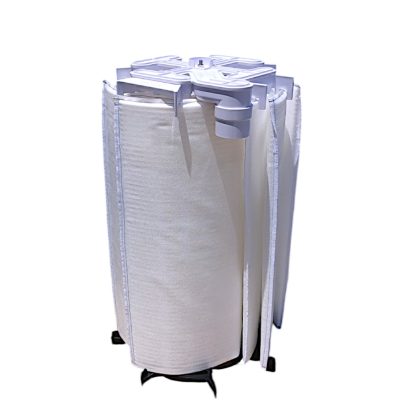

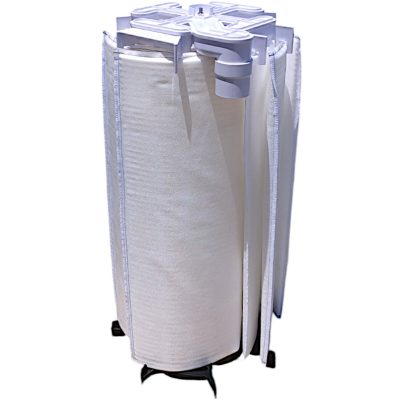

27	R0442600	DEV/DEL 60 Complete set of filter grids (7 full-size, 1 short span) (not shown)
28	R0442700	DEV/DEL 48 Complete set of filter grids (7 full-size, 1 short span) (not shown)
29	R0327300	DEL Filter Coupling Nuts (not shown)
30	R0449000	DEV Filter Tailpiece Union Nut (not shown)
