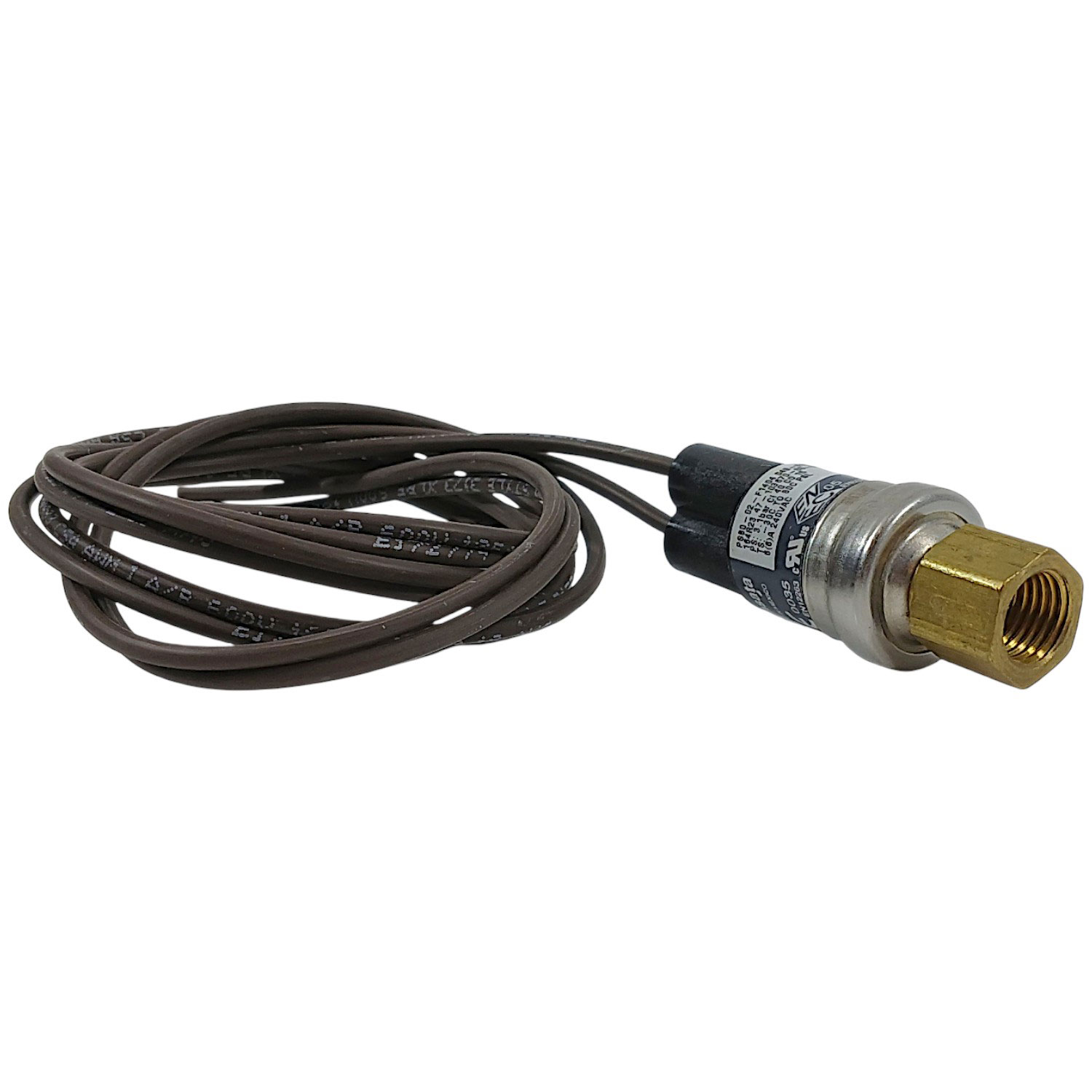

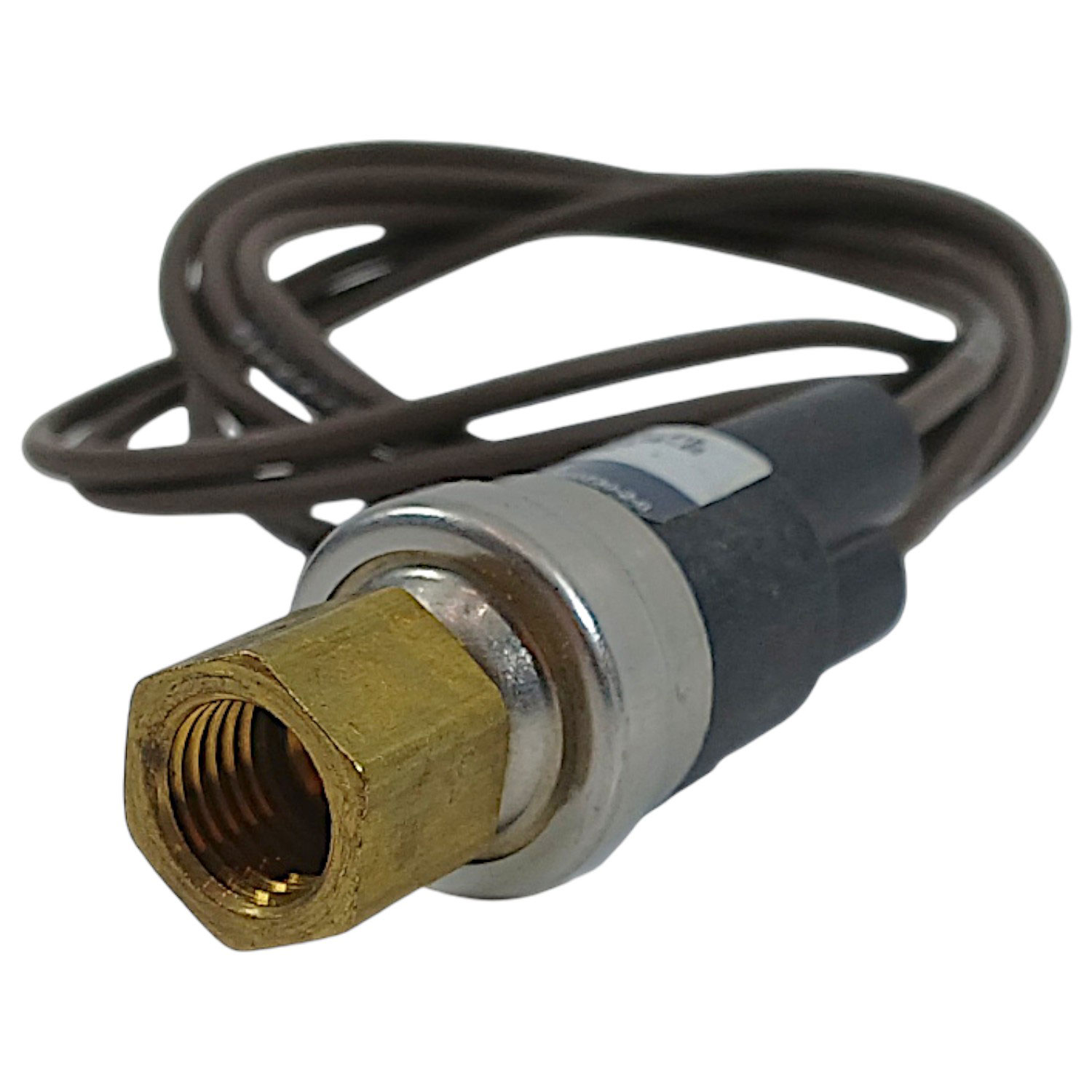

H000078 PS80-02-F1404 040-015 Raypak Low Pressure Switch Kit for Raypak pool and spa heaters. OEM factory-tested replacement safety switch.
The Raypak H000078 Low Pressure Switch Kit is a genuine factory replacement part used in Raypak gas pool and spa heaters.
This switch serves as a critical safety component that monitors the water pressure in your heater’s system. When water pressure drops below safe operating levels, the switch automatically interrupts the circuit, preventing the heater from firing and protecting the heat exchanger and internal components from damage.
Features:
- Genuine Raypak® OEM Factory Replacement Part
- Protects against unsafe low-water pressure conditions
- Automatically shuts off heater when pressure is too low
- Factory calibrated for precise operation
- UL and CE certified for performance and reliability
- Includes prewired low-pressure switch and brass fitting
Technical Specifications:
- Part Number: H000078
- Manufacturer: Raypak® (A Rheem® Company)
- Component Type: Low Pressure Switch Kit
- Model Code on Sensor: PS80-02-F1404 040-015
- Operating Pressure: 3.1 bar (45 PSI)
- Max Electrical Load: 6A @ 240VAC
- Temperature Range: -30°C to 80°C
- Thread Type: 1/8” NPT Brass connection
- Cable Length: Factory wired leads for easy installation
Function:
This low-pressure safety switch monitors the water pressure within the circulation system. If flow drops too low, it opens the circuit to shut off the heater—protecting the system from overheating or heat exchanger damage due to insufficient water flow.
Compatibility:
- Fits various Raypak Pool & Spa Heater models
- Compatible with gas heaters using low-pressure control circuits
Safety & Installation Notes:
Installation should be performed by a qualified pool professional or licensed technician. Always disconnect power before servicing. Proper calibration and testing are required before use.
