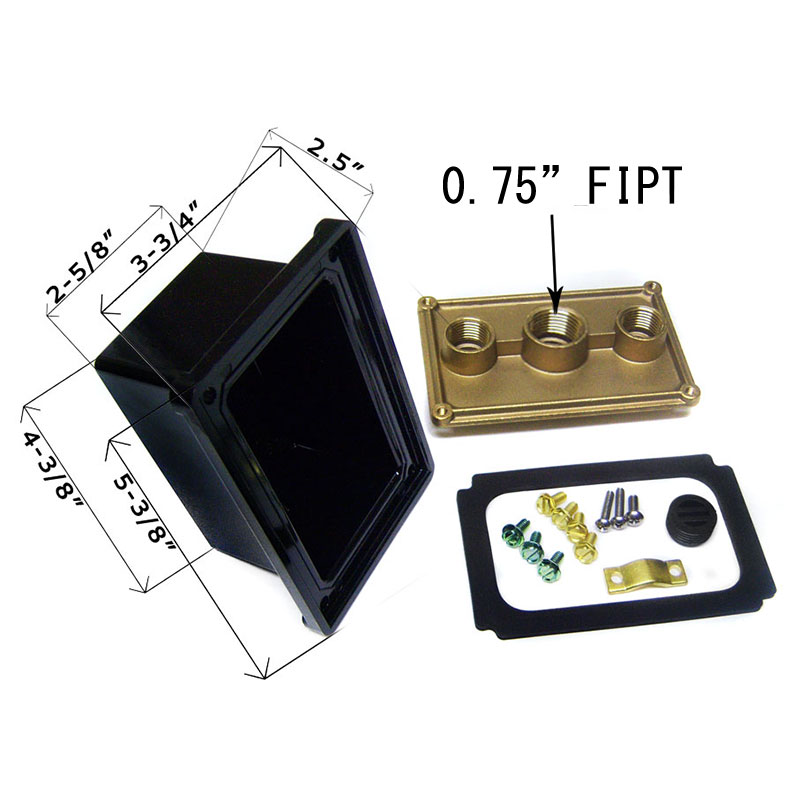

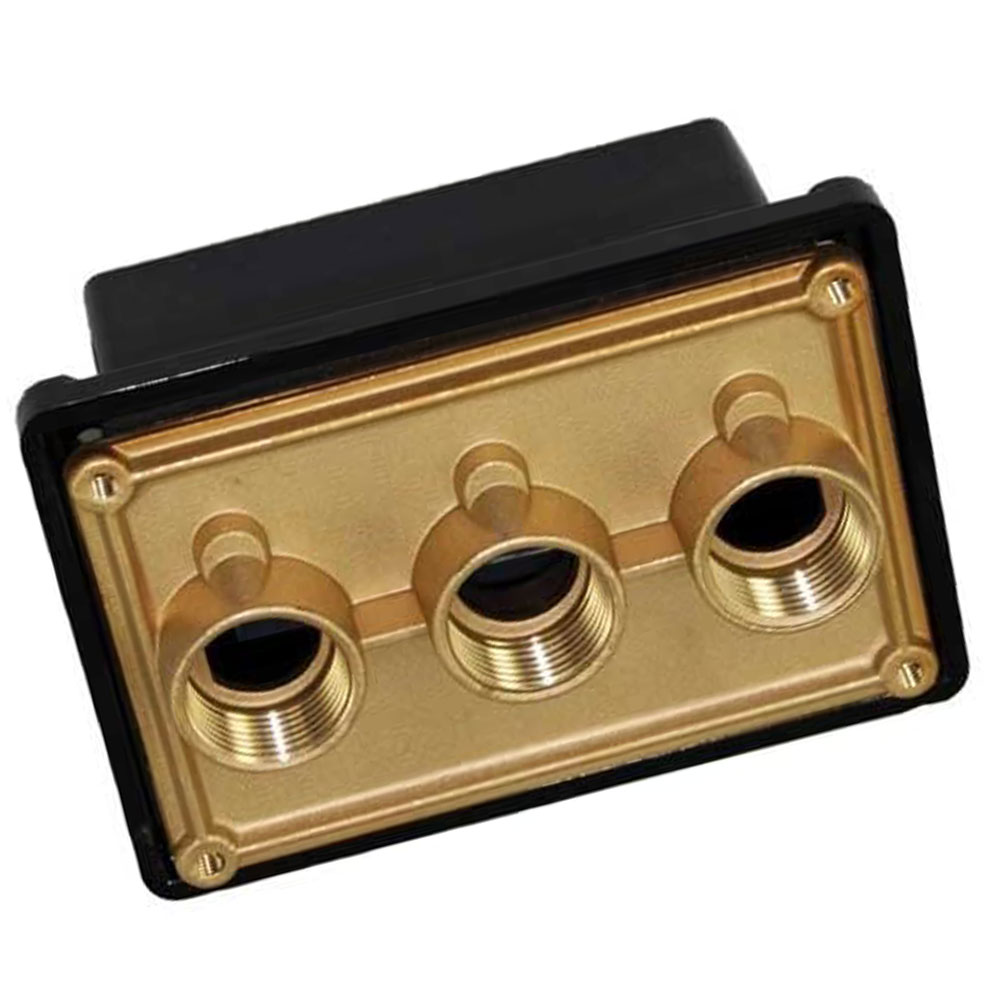

Pentair® 78310500 Swimming Pool and Spa Light Junction Box Lexan Brass J-Box 0.75 3/4 inch 3 Port Hole Brass Base and Polycarbonate Cover
Installing a Junction Box during new pool construction.
THE FOLLOWING PREPARATORY STEPS MUST BE COMPLETED BY THE ELECTRICIAN BEFORE LIGHT IS INSTALLED; SEE FIGURE 1.
- Ensure that the electrical system of your pool conforms with all requirements of the National Electrical Code (NEC), and all local codes and ordinances. A licensed or certified electrician must install the electrical system to meet or exceed those requirements before the Junction Box is installed. Some of the NEC requirements are listed below.
- The lighting circuit must have a Ground Fault Circuit Interrupter (GFCI), and has an appropriately rated circuit breaker
- The Junction Box must be located at least 8 inches above water level and 4 inches above ground level. The Junction Box should also be located at least 48 inches from the edge of the pool; see Figure 1.
- The light fixture and all metal items within five (5) feet of the pool must be properly electrically bonded.
- The Junction Box must be properly electrically bonded and grounded.
- The Junction Box must be properly electrically bonded and grounded.
- Position Junction Box to meet National Electrical Code requirements and to prevent hazard to personnel.
- The center conduit hub is provided with a strain relief for a cord size up to a 10/3 AWG cord. Use underwater lights with water resistant cord only.
- Three equipment grounding terminals are provided for internal grounding suitable for #16 AWG to #10 AWG wire. One pressure wire grounding terminal is provided for a #8 AWG insulated copper bonding wire.
- Install the Junction Box gasket between the Junction Box base and cover. Replace gasket if worn or damaged (P/N 79300600).
- Plug any unused conduit hubs with the conduit plugs provided.
Junction Box .5’x.5’x.5′
