Pentair 523770 IntelliChlor® Plus30, Plus40, and Plus60 HMI Controller Assembly – Genuine Replacement Display & Control Module (UPC 788379918750)
ELECTRICAL ITEM, FINAL SALE, NOT RETURNABLE.

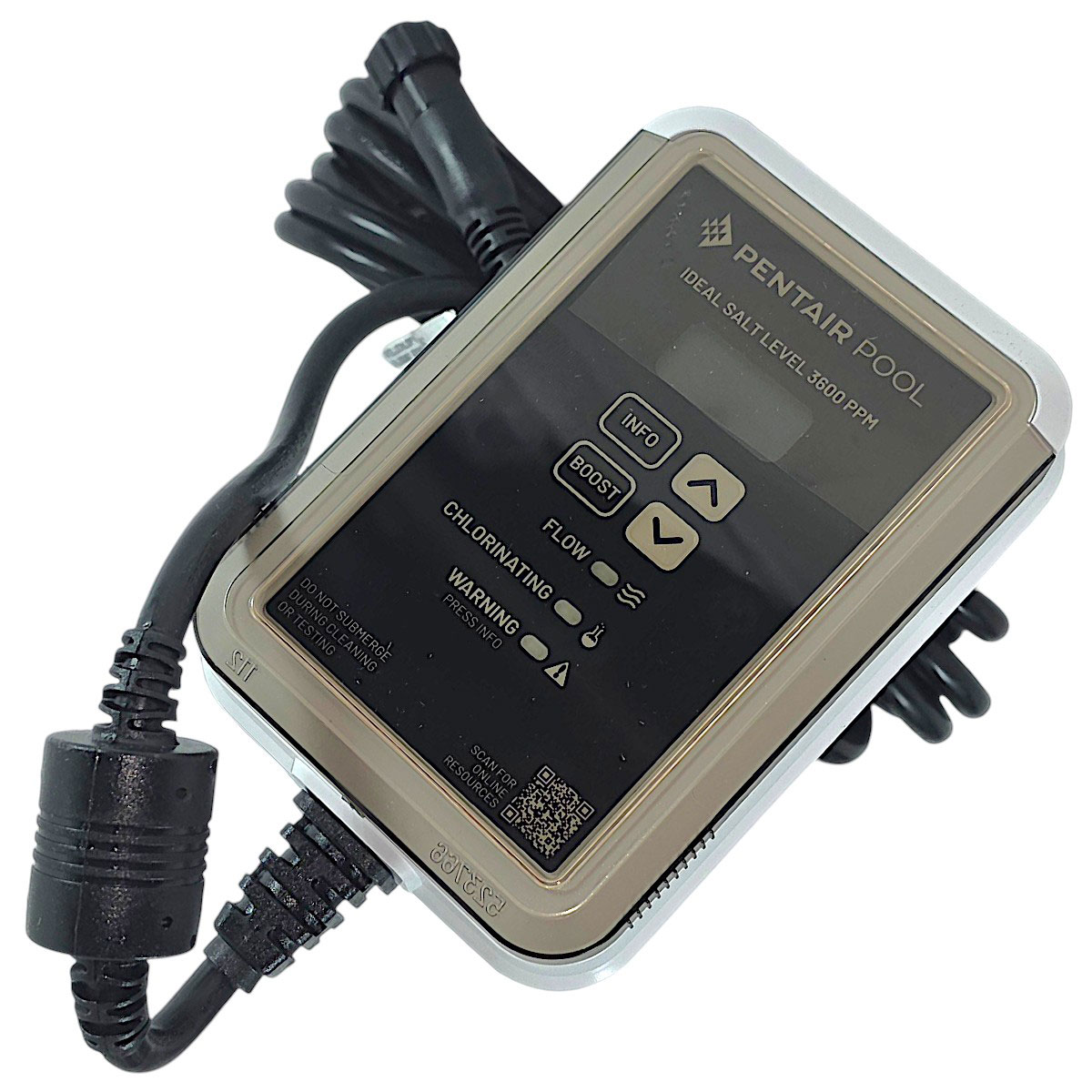

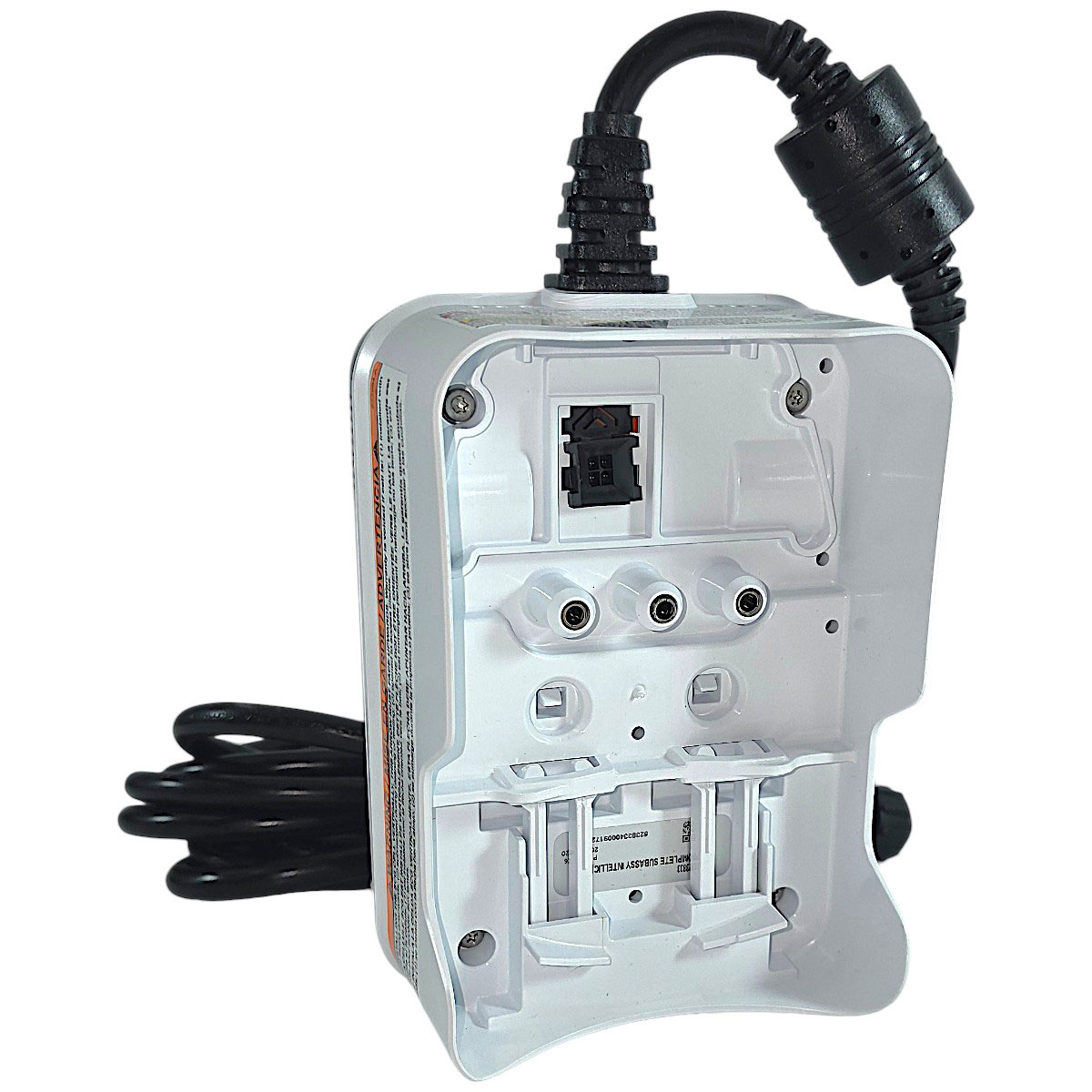

Restore full control of your salt system without replacing the entire cell. The Pentair 523770 HMI Controller Assembly is the genuine OEM replacement display and control module (Human-Machine Interface) for Pentair IntelliChlor® Plus salt chlorine generators, including the Plus30, Plus40, and Plus60 models. If your IntelliChlor Plus screen has gone blank, the buttons stop responding, the LCD is faded or scrambled, or the unit throws persistent false alerts, this black controller assembly is the factory-specified fix — listed in Pentair’s official Installation and Maintenance Guide as “Controller Assembly, PLUS” and in the Pentair catalog as “HMI ELEC REPL PLUS.”
One of the biggest advantages of the IntelliChlor Plus platform over older IntelliChlor and iChlor® generators is its modular serviceability: the display electronics, sensor module, and cell blades are separate replaceable components. That means when only the interface fails, you replace only the interface — a fraction of the cost of a complete salt cell. The 523770 snaps into place on your existing IntelliChlor Plus body and restores the full LCD readout, output adjustment buttons, and the complete suite of 20+ built-in diagnostics.
Key Features of the Pentair 523770 HMI Replacement
- Genuine Pentair OEM Part – Factory replacement controller assembly (P/N 523770, UPC 788379918750) for IntelliChlor Plus salt chlorine generators; black housing.
- Full LCD Display Restored – Shows real-time chlorine output percentage and the most recently measured salinity, plus clear warning and fault messages.
- INFO Button Diagnostics – Scroll through Cell Run Time, Salinity Level, Water Temperature, and Cell Voltage readings directly on the display.
- 20+ Built-In Diagnostics & Warnings – Alerts like ADD SALT, SYS OFF LOW SALT, and SYS OFF CHK CELL make troubleshooting fast for homeowners and service techs alike.
- Updated 1.004 Firmware – Current 523770 stock ships with the revised firmware per Pentair TSB A00709, eliminating nuisance alert tripping found on early 1.003 units.
- Modular, Cost-Effective Repair – Replace only the failed electronics instead of the entire salt cell; no plumbing work required.
- Straightforward Installation – Designed for quick swap-out on the IntelliChlor Plus body following the Pentair Installation and Maintenance Guide.
- Works With Your Existing System – The IntelliChlor Plus platform remains compatible with the IntelliChlor Power Center (PC100) and Pentair automation systems.
Is the 523770 the Right Part for Your System?
The 523770 is the HMI controller for IntelliChlor Plus models only. If you own an IntelliChlor LT15 or LT25, the correct display module is Pentair 523775 (HMI Electronic Replacement LT) — the two are not interchangeable. Not sure which alert you’re chasing? Common symptoms that point to the HMI controller rather than the cell or sensor module include a dead or garbled display, unresponsive OUTPUT/INFO buttons, communication faults between the display and the system, and recurring false warnings on units manufactured before the October 2025 firmware revision. If your issue is inaccurate salinity readings or temperature errors, you may need the 523769 Sensor Module Replacement instead — we stock that too, and our Pasadena team is happy to help you diagnose before you buy.
Compatibility
The Pentair 523770 HMI Controller Assembly fits the following IntelliChlor Plus Salt Chlorine Generators:
- IntelliChlor Plus30 – 30,000-gallon cell (523730; bundle 523733)
- IntelliChlor Plus40 – 40,000-gallon cell (523735 / 523735-EC)
- IntelliChlor Plus60 – 60,000-gallon cell (523738)
Not compatible with: IntelliChlor LT15 / LT25 (use Pentair 523775), legacy first-generation IntelliChlor IC15/IC20/IC30/IC40/IC60 cells, or iChlor 15/30 cells — those older generators do not use this modular HMI design.
Related IntelliChlor Plus/LT parts we carry: 523769 Sensor Module Replacement, 523764 Plus30 Cell & Sensor Assembly, 523765 Plus40 Cell & Sensor Assembly, 523827 Plus60 Cell & Sensor Assembly, 523759 Accessory Bag, 520595 Union Kit, and PC100 Power Center components.
Frequently Asked Questions
Q: My IntelliChlor Plus display is blank but the Power Center has power. Is the 523770 the fix?
A: A dead or scrambled display with a powered system is the classic symptom of a failed HMI controller. Verify power and connections first; if the display still won’t respond, the 523770 controller assembly is the factory-specified replacement.
Q: Does the 523770 fix the false alarm / nuisance alert problem?
A: Yes. Pentair’s TSB A00709 (October 2025) identifies the 523770 with firmware 1.004 as the replacement part that eliminates nuisance alert tripping on earlier IntelliChlor Plus/LT controllers running firmware 1.003.
Q: Will this work on my IntelliChlor LT15 or LT25?
A: No. The LT models use part number 523775. The 523770 is for the Plus30, Plus40, and Plus60 only.
Q: Do I need to replace the whole salt cell?
A: Not if only the display/controls have failed. The IntelliChlor Plus modular design lets you replace just the HMI electronics with the 523770 — a significantly less expensive repair than a full cell assembly.
Q: Is this a genuine Pentair part?
A: Yes. Best Pool Shop is an authorized Pentair dealer, and every 523770 we sell is a brand-new, genuine Pentair OEM component with UPC 788379918750.
Q: How do I know if I need the 523770 controller or the 523769 sensor module?
A: Display, button, and alert-logic problems point to the 523770 HMI controller. Inaccurate salinity readings, water temperature errors, or flow-sensing issues typically point to the 523769 sensor module. Contact us if you’d like help confirming before ordering.
Order the Pentair 523770 IntelliChlor Plus HMI Controller Assembly today and get your salt system’s display, diagnostics, and dependable chlorine control back — with genuine-parts peace of mind from an authorized Pentair dealer.
