Pentair Swimming Pool IntelliTouch EasyTouch Automation System Before 2012 to IntelliCenter Upgrade Kit i10PS for Pool Spa 522046
Bring your aging pool automation back to life — without ripping out your equipment pad. The Pentair 522046 IntelliCenter Upgrade Kit (i10PS) converts legacy EasyTouch® and IntelliTouch® Control Systems manufactured between 2003 and 2012 into a modern, Wi-Fi-connected IntelliCenter® Control System. Instead of purchasing an entirely new automation system, you reuse your existing Load Center or Power Center enclosure and wiring: swap the bezel, board, and transformer, and your pool and spa are running on Pentair’s newest automation platform.
Because the 522046 kit ships with the i10PS shared-equipment personality board (P/N 521873Z), it is purpose-built for pool and spa combination systems that share a filtration pump and heater. Once installed, you can monitor and control pumps, heaters, lighting, sanitization, and water features from anywhere using the Pentair Home app on your smartphone, tablet, or computer — or right at the equipment pad from the included outdoor control panel.
Why Upgrade Your EasyTouch or IntelliTouch to IntelliCenter?
EasyTouch and IntelliTouch systems from the 2003–2012 era were workhorses, but they predate the modern smart-home world. Replacement boards are increasingly scarce, remote access requires legacy accessories, and there are no over-the-air updates. The IntelliCenter platform solves all of that in a single afternoon retrofit:
- Control from anywhere, anytime — manage your pool and spa from a smart device, computer, indoor control panel, or wireless remote
- Automatic over-the-air updates — your system keeps improving with new firmware features delivered via Wi-Fi
- Smart alerts — receive notifications when equipment needs attention, before small issues become expensive repairs
- Shared-equipment pool/spa logic — the i10PS board handles spa-side switching, freeze protection, and heater coordination for combo systems
- Expandable platform — accommodates future equipment add-ons, expansion boards, and product upgrades as your backyard grows
- Cost-effective retrofit — installs into your existing 2003–2012 Load Center or Power Center using the current wiring and housing

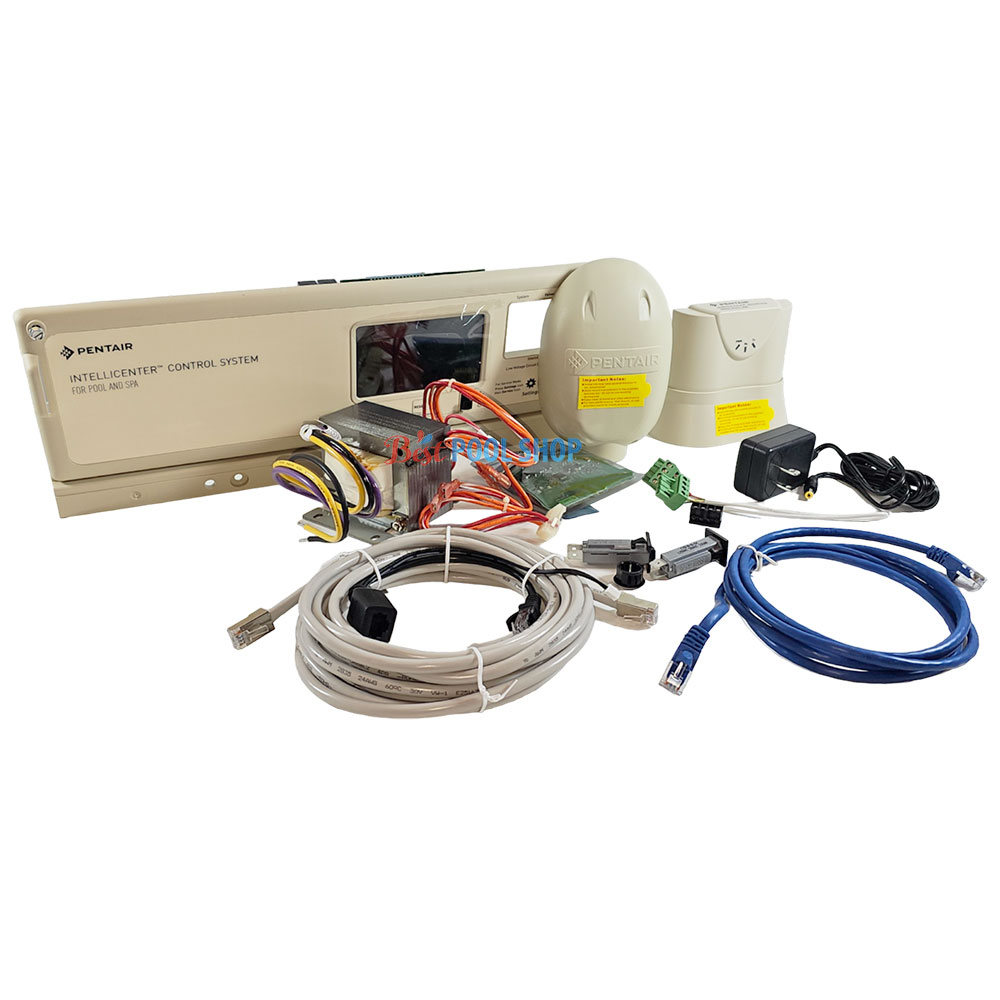

What’s Included in the Pentair 522046 Kit
- IntelliCenter outdoor control panel with bezel
- i10PS Personality Board, shared equipment (P/N 521873Z)
- System transformer with bracket assembly
- Circuit breakers for the low-voltage side of the enclosure
- High-power wireless link / antenna kit for Wi-Fi connectivity
- Wiring diagram label and installation hardware
Compatibility — Is the 522046 the Right Kit for Your System?
The 522046 is specifically designed for pool/spa combination (shared equipment) systems installed in a Load Center or Power Center manufactured between 2003 and 2012. Pentair produced two different enclosure generations, so choosing the correct kit matters:
- 522046 — Pool & Spa combo, enclosures built 2003–2012 (this kit, i10PS board)
- 522045 — Single body of water (pool OR spa), enclosures built 2003–2012 (i10P board)
- 522047 — Single body of water, Common Load Center / Power Center built after 2012 (i10P board)
- 522048 — Pool & Spa combo, Common Load Center / Power Center built after 2012 (i10PS board)
Quick identification tip: pre-2012 enclosures have high-voltage AC breakers arranged in two center columns with an external salt cell transformer, while post-2012 Common Load Centers align the breakers along the left side with room for an internal salt-chlorine-generator transformer on the right. If you’re unsure, check the date label inside the cabinet or contact us with photos of your open panel — we’re happy to confirm the right kit before you order. Note that a small number of very early EasyTouch enclosures equipped with an SCG reset-button bracket are not compatible with this upgrade per Pentair’s installation guide, so verify your cabinet configuration first.
After the upgrade, your IntelliCenter system integrates with the full Pentair ecosystem, including IntelliFlo® variable speed pumps, IntelliChlor® salt chlorine generators, IntelliBrite® color LED lighting, MasterTemp® and Max-E-Therm® heaters, and IntelliValve® actuators.
Technical Specifications
| Part Number | 522046 |
| Manufacturer | Pentair® |
| Product Type | Pool automation control system upgrade kit |
| Personality Board | i10PS, shared equipment (P/N 521873Z) |
| Body of Water | Pool and spa combination (shared filtration equipment) |
| Compatible Enclosures | EasyTouch® / IntelliTouch® Load Center or Power Center, manufactured 2003–2012 |
| Upgrades To | IntelliCenter® Control System platform |
| Connectivity | Wi-Fi via included high-power wireless antenna kit; Pentair Home app (iOS/Android) and web access |
| Firmware | Automatic over-the-air updates |
| Installation | Retrofit into existing enclosure and wiring; professional installation recommended |
| Condition | Brand new, genuine Pentair product |
Frequently Asked Questions
Q: Do I need to replace my entire Load Center?
A: No. The 522046 reuses your existing 2003–2012 enclosure and field wiring. You replace the bezel/outdoor control panel, the personality board, and the transformer — the high-voltage side stays in place.
Q: How do I know if my system is pre-2012 or post-2012?
A: Open the front door and look for a date label inside the cabinet, or compare the breaker layout: two center columns of high-voltage breakers indicates a pre-2012 enclosure (use 522046 for pool/spa combos), while breakers aligned along the left side indicates a post-2012 Common Load Center (use 522048 instead).
Q: Will my IntelliFlo pump, IntelliChlor salt cell, and IntelliBrite lights still work?
A: Yes. IntelliCenter is designed around the same Pentair equipment ecosystem and adds deeper scheduling, color-show, and chlorination control through the app.
Q: I only have a pool (no spa). Is this the right kit?
A: For a single body of water on a 2003–2012 enclosure, order the 522045 kit with the i10P board instead. The 522046 i10PS board is for shared pool/spa equipment.
Q: Can I install it myself?
A: The retrofit is well documented in Pentair’s IntelliCenter Upgrade Kit installation guide, but it involves high-voltage wiring inside the enclosure. We recommend installation by a qualified pool professional or electrician.
Q: Does the kit include Wi-Fi?
A: Yes — the included high-power wireless link/antenna kit connects the system to your home network so you can use the Pentair Home app and receive over-the-air updates.
Order the Genuine Pentair 522046 IntelliCenter Upgrade Kit Today
Best Pool Shop is an authorized Pentair dealer stocking genuine automation parts at our Pasadena, CA store and shipping nationwide. Order the 522046 IntelliCenter Upgrade Kit today and give your 2003–2012 EasyTouch or IntelliTouch system the modern, app-controlled upgrade it deserves — fast shipping from Los Angeles, expert compatibility help before you buy, and support from a team that installs and troubleshoots these systems every week.
