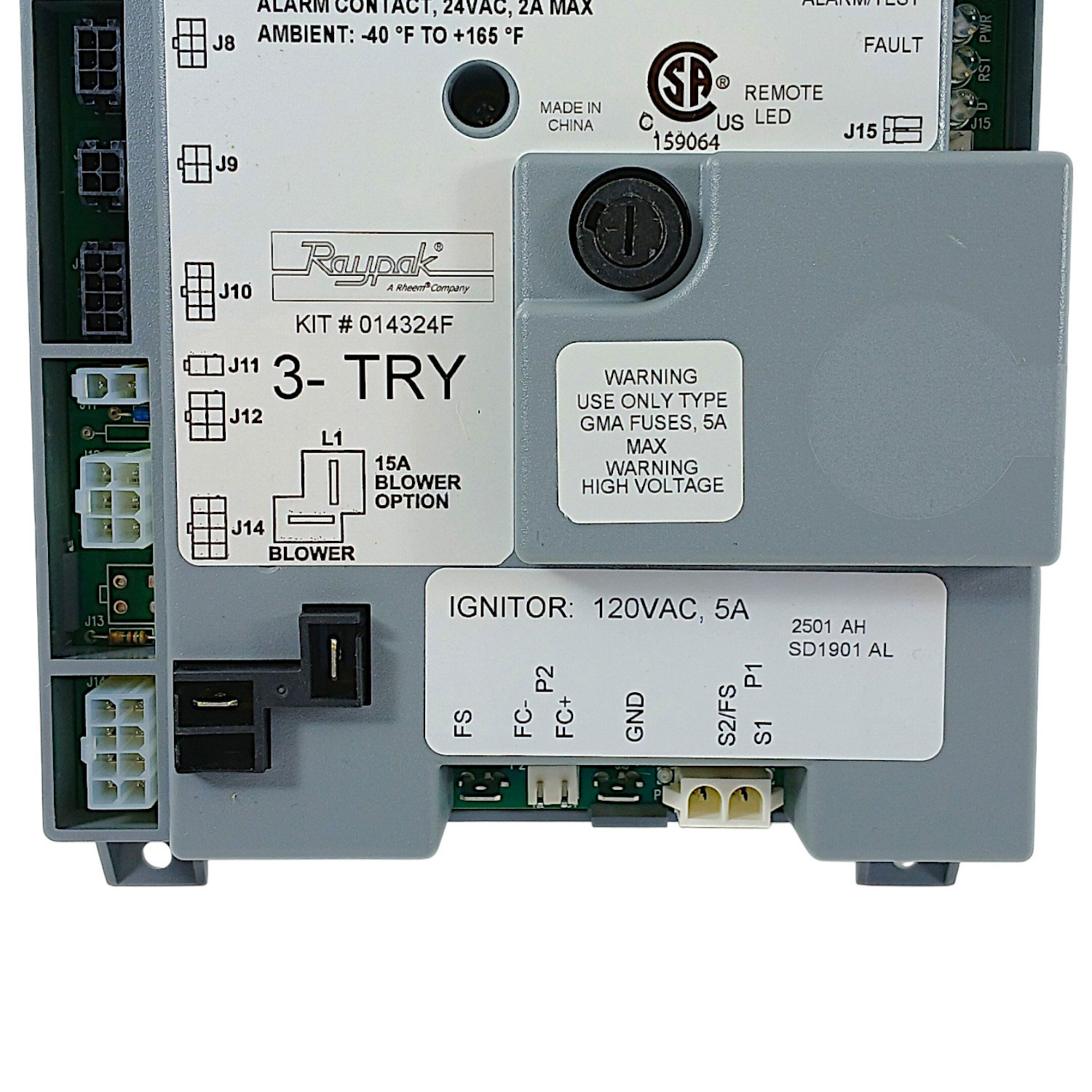

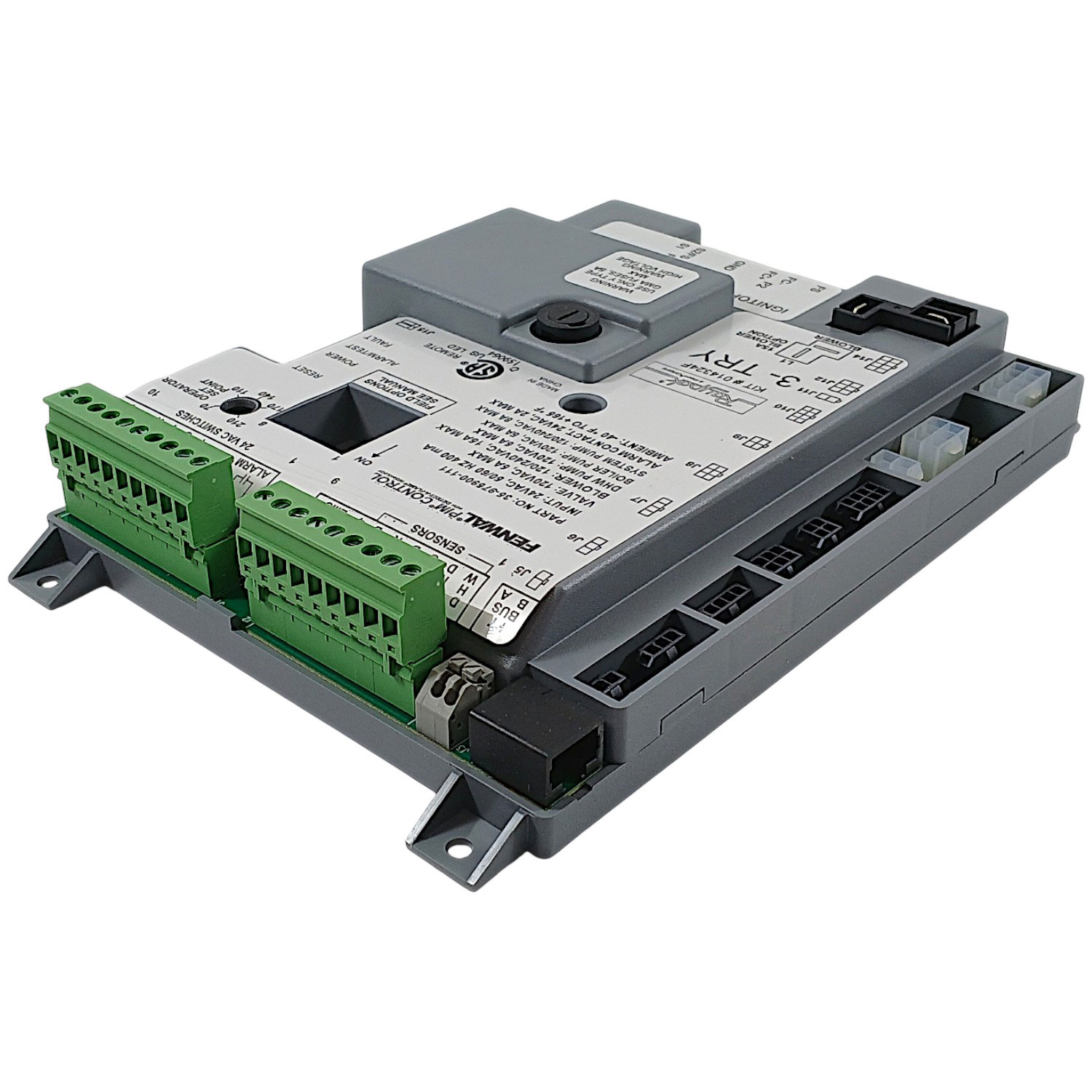

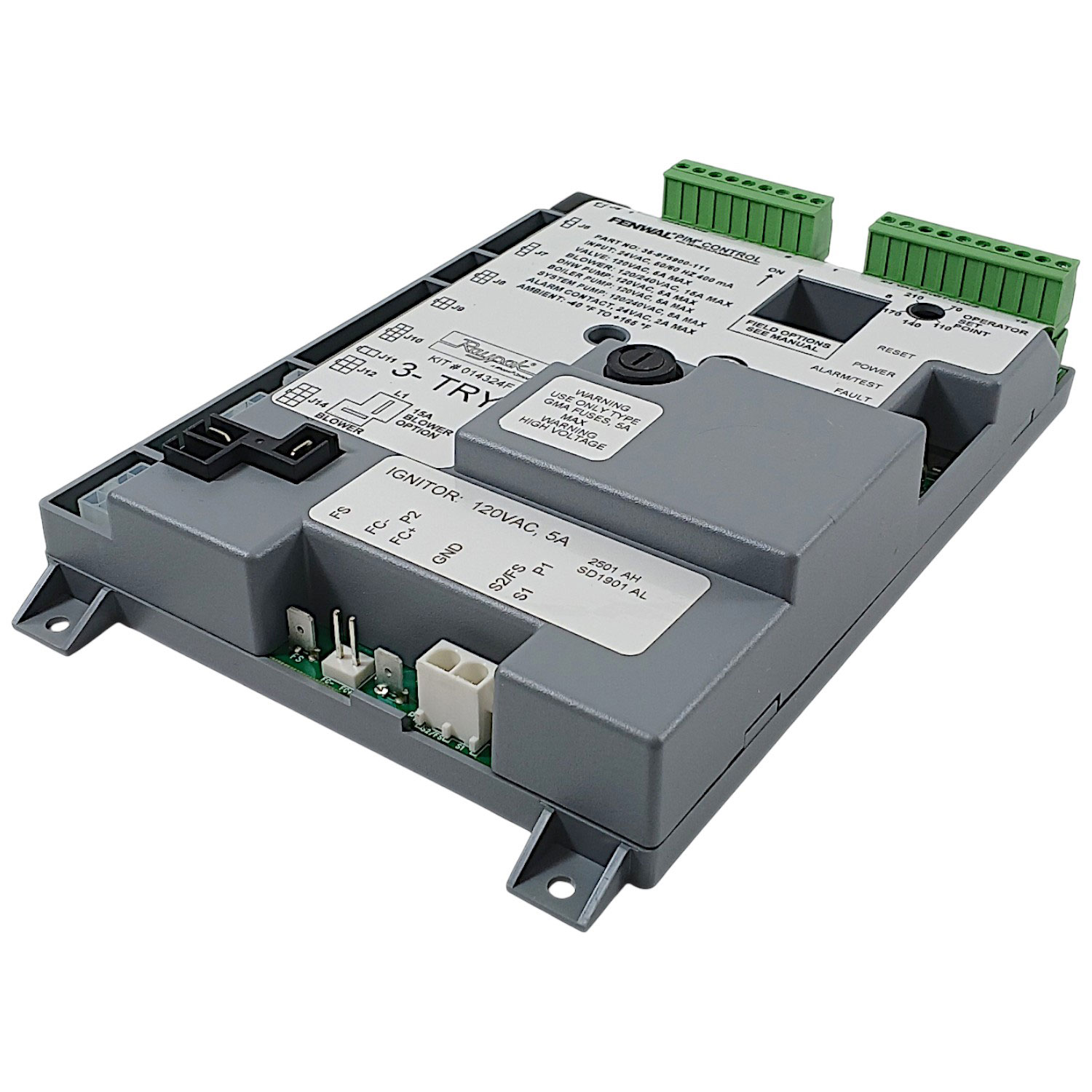

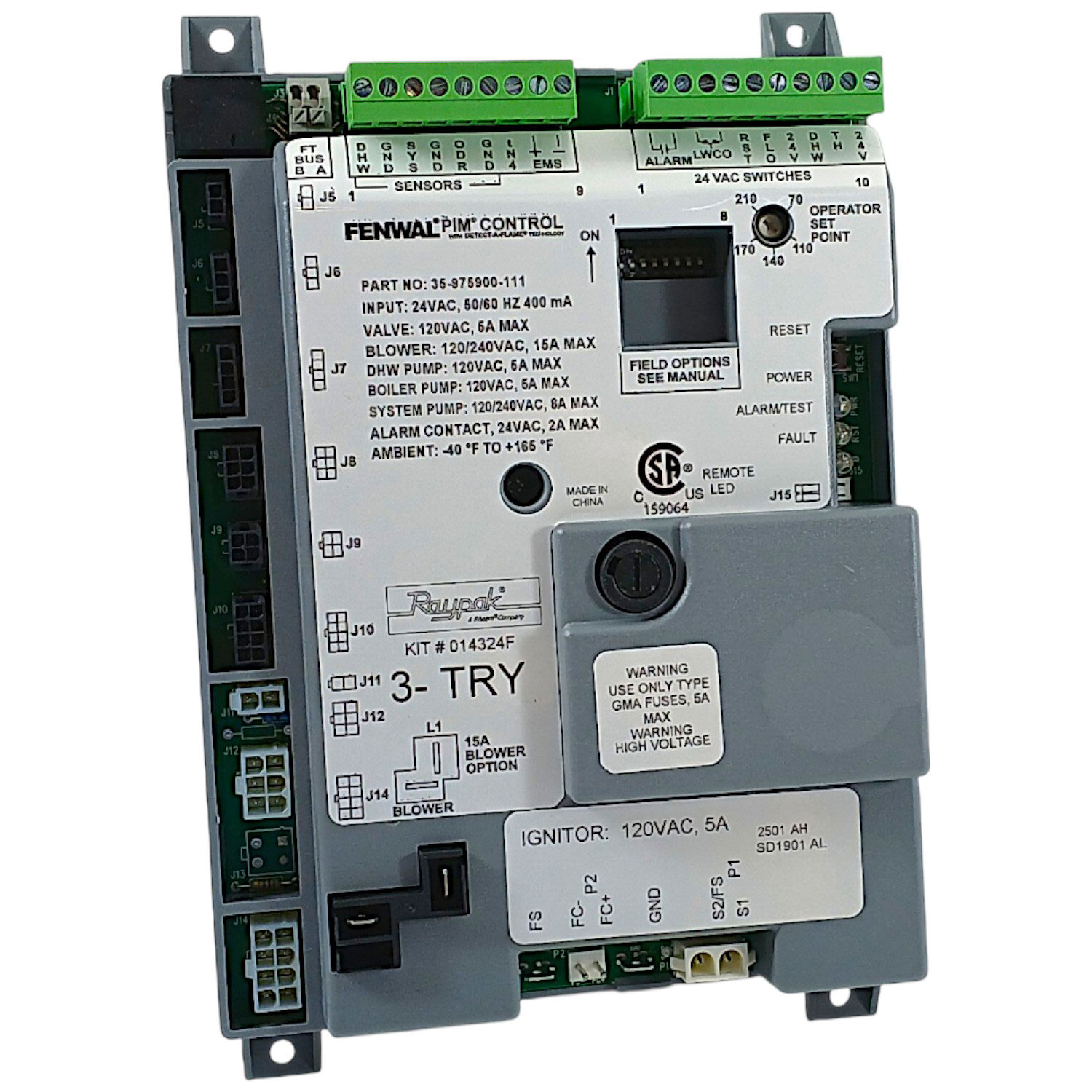

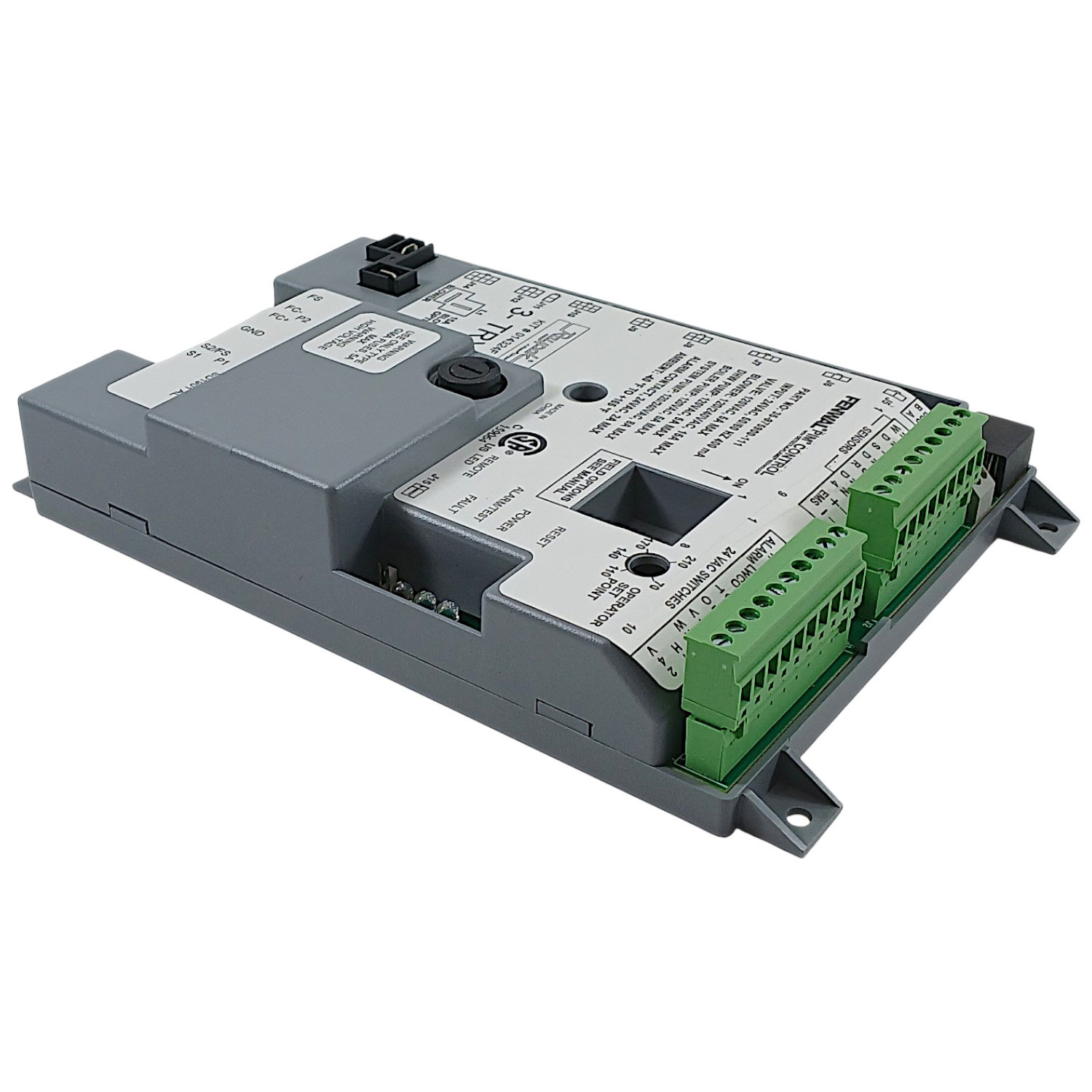

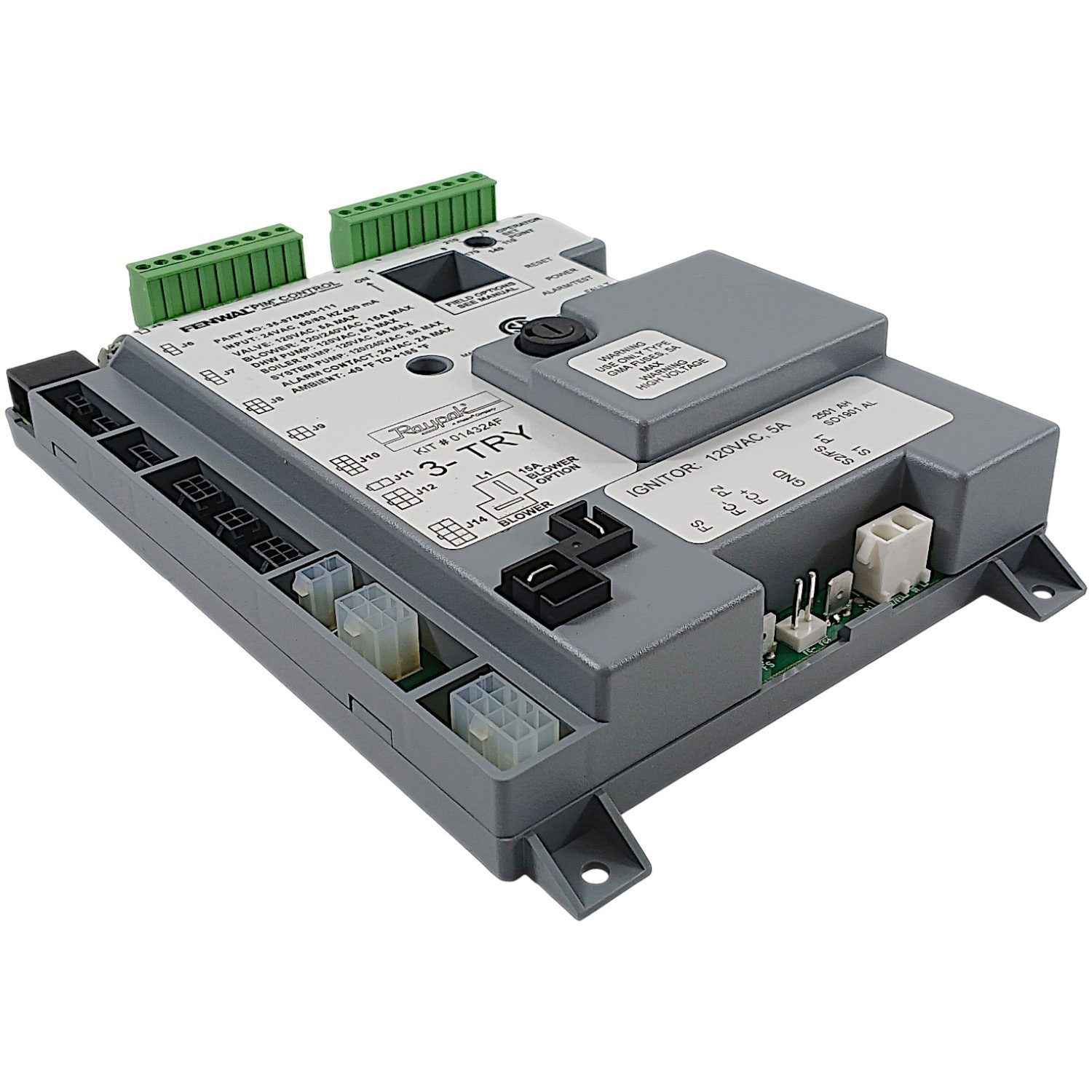

014324F Raypak® Factory Original Ignition Control Kit (3-Try HSI) for Commercial Heaters including MVB and XTherm “A” models. Genuine Raypak replacement part with Fenwal® PIM Control module. Ensures reliable ignition sequencing, flame sensing, and system safety shutdown for hot surface ignition (HSI) systems.
The Raypak 014324F Ignition Control Kit is a factory-authorized 3-Try Hot Surface Ignition (HSI) Control Module, designed for use in Raypak MVB and XTherm “A” commercial boilers and water heaters.
This PIM (Platform Ignition Module) regulates ignition timing, flame verification, and automatic retry sequence to maintain safe and reliable combustion control.
014324F Raypak® Multi-Try 3-Try HSI Ignition Control Module for for MVB & XTherm “A” Models Features:
- Genuine Raypak® Factory Replacement Part
- Fenwal® PIM Control with Detect-A-Flame® technology
- 3-Try ignition safety cycle with automatic lockout
- Controls ignition, blower, and safety sensors
- Preprogrammed for Raypak MVB “A” and XTherm “A” model compatibility
- Field-selectable options and diagnostic LED indicators
- Built-in high-limit and alarm interface terminals
Technical Specifications:
- Part Number: 014324F
- Manufacturer: Raypak® (A Rheem® Company)

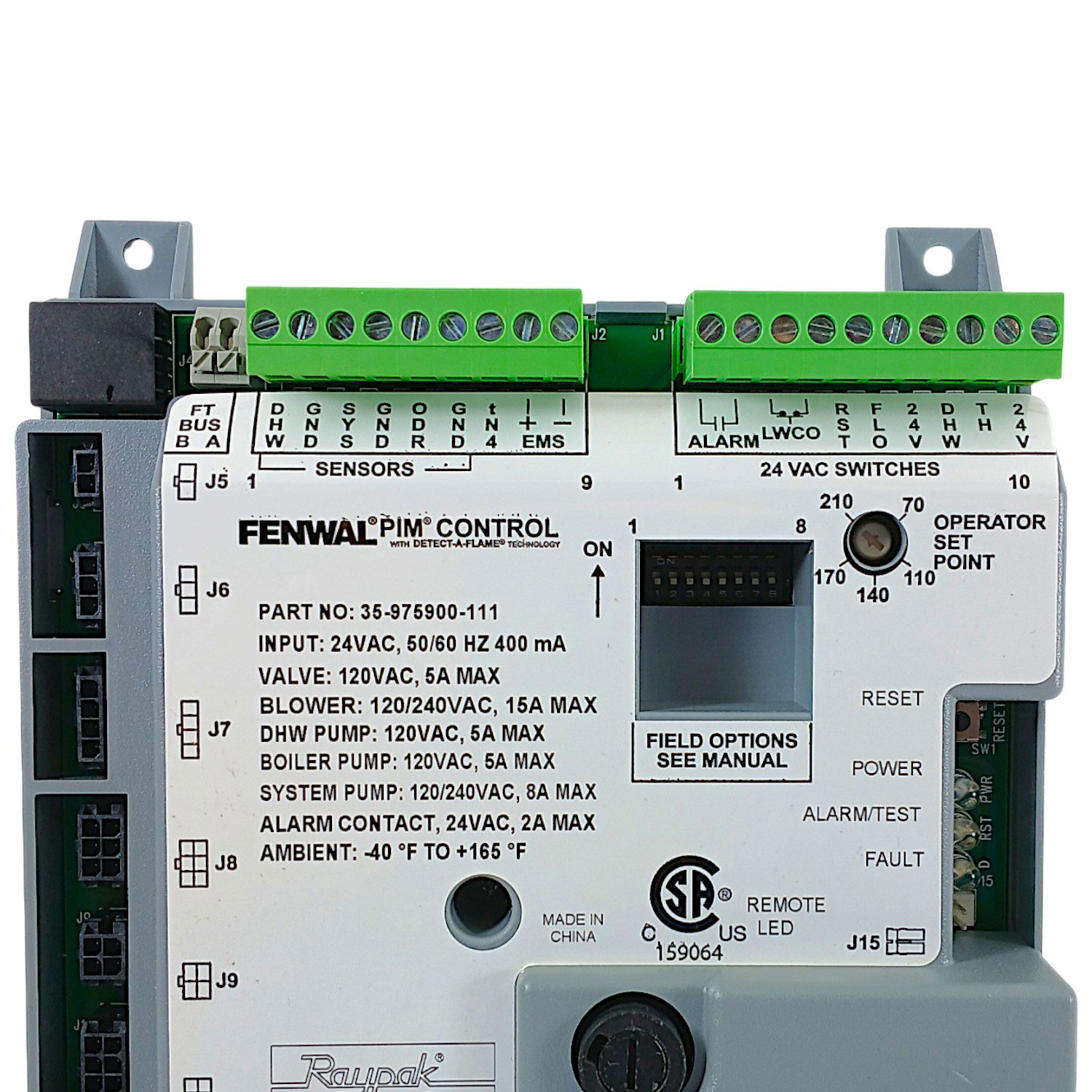

- Control Model: Fenwal 35-975900-111
- Voltage: 24 VAC input; 120/240 VAC output
- Ignitor Output: 120 VAC, 5A Max
- Blower Output: 120/240 VAC, 15A Max
- Alarm Contact: 24 VAC, 2A Max
- Operating Temperature Range: -40°F to +165°F
Compatibility:
- MVB “A” Models
- XTherm “A” Models
Replaces Older Models:
013934F, 014325F (depending on model version)
Safety & Installation Notes:
For qualified service personnel only. Always disconnect power and gas supply before servicing. Improper installation may cause equipment damage or personal injury.
