Intermatic Swimming Pool and Spa Mechanical Timer Time Switch 220V DPST T104M

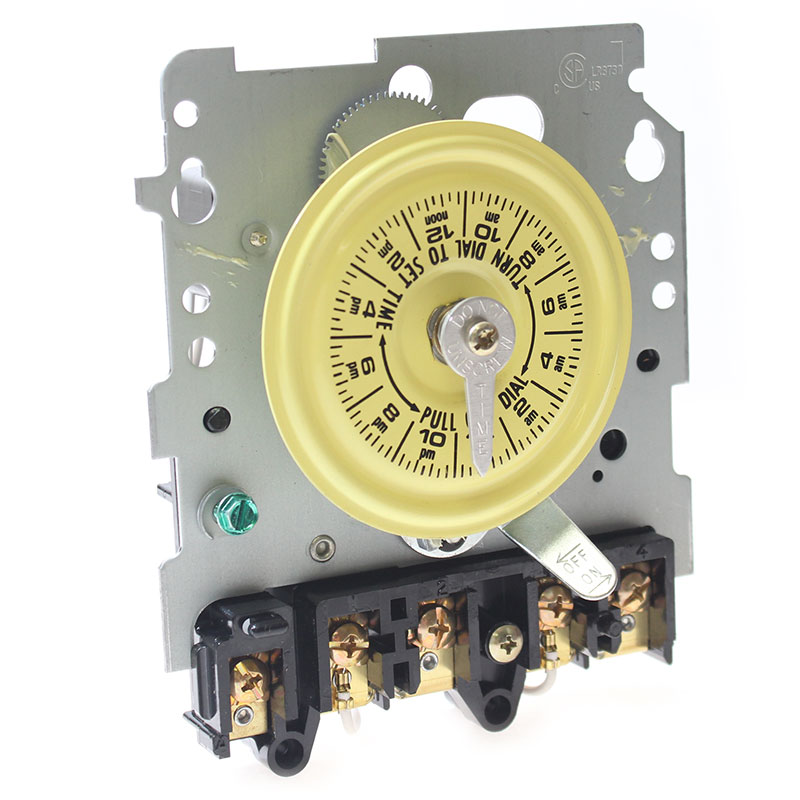

24-HOUR MECHANICAL TIME SWITCH-MECHANISM ONLYThe T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
Features and Applications of Intermatic Swimming Pool and Spa Mechanical Timer Time Switch 220V DPST T104M
Features of Intermatic Swimming Pool and Spa Mechanical Timer Time Switch 220V DPST T104M
- Direct 24-hour control of most loads
- Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
- Manual override

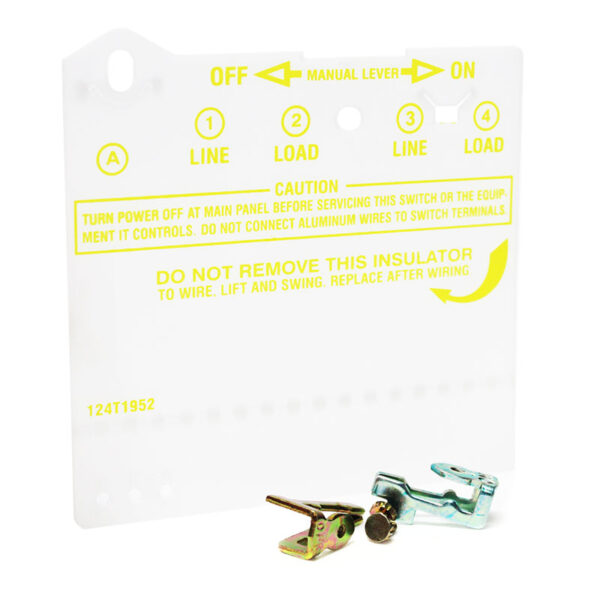

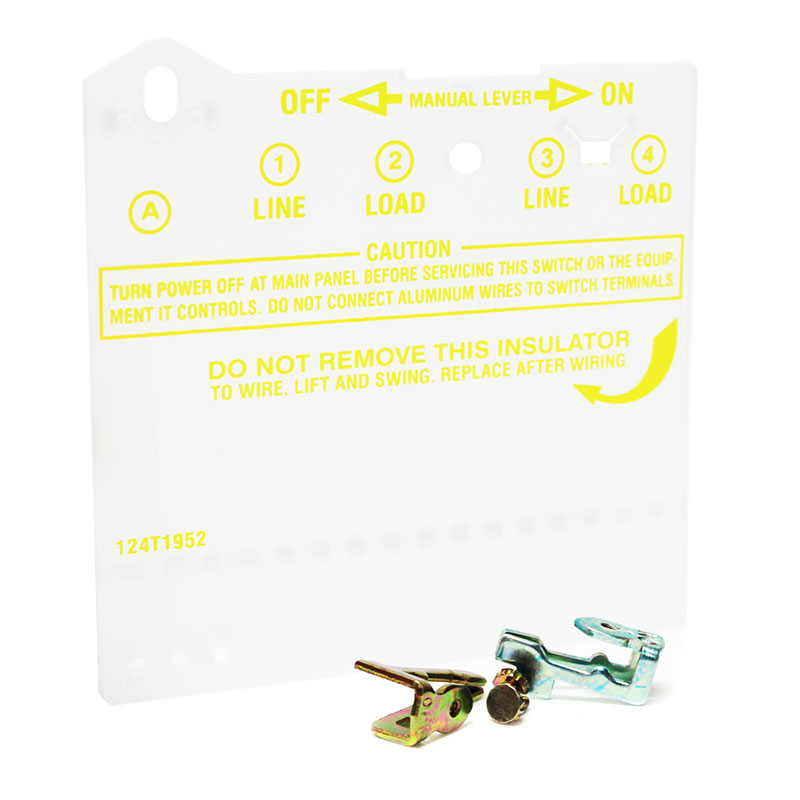

- One ON and one OFF tripper included
Applications of Intermatic Swimming Pool and Spa Mechanical Timer Time Switch 220V DPST T104M
- Indoor/Outdoor Lighting
- Signs
- Filters
- Electric Fences
- Fans
- Conveyors
- Pool Heaters
- Blowers
- Pumps
- Other Electrical loads
Specifications of Intermatic Swimming Pool and Spa Mechanical Timer Time Switch 220V DPST T104M
- Maximum ON/OFF Operations : 12
- Has Override Switch: No
- Electronic Ballast:Â 16 A, 277 VAC, 60 Hz
- Motor:
- 2 HP, 24 FLA, 120 VAC, 60 Hz
- 5 HP, 28 FLA, 240 VAC, 60 Hz
- Number of Trippers Included: 2
- Number of Circuits:Â 1
- Maximum Power Consumption (W):Â 3 W
- Switch Type: DPST
- Operating Temperature Max (°C): 54
- Operating Temperature Max (F): 130
- Operating Temperature Min (°C): -40
- Operating Temperature Min (F): -40
- Manufacturer Warranty: 1-year
