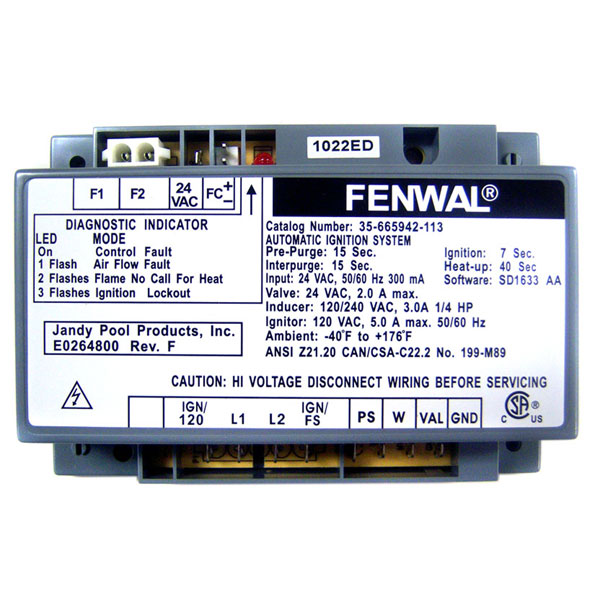

Jandy Ignition Control Hot Surface LXi Replacement Kit R0456900
Used on the following LXi models:
- 250,
- 300,
- 400
The images below give instructions for replacing the ignition control, power distribution circuit board, universalcontroller power interface PCB and blower pressureswitch in all Jandy LXi pool/spa heaters.The instructionsmust be followed exactly.These instructions were written with safety as thepriority.Not following the written procedure or takingshort cuts may increase the risk of personal injury.Readthrough the instructions completely beforestarting theprocedure (click on the images to enlarge them).
Page 1 | Page 2 |
Page 3 | Page 4 |
