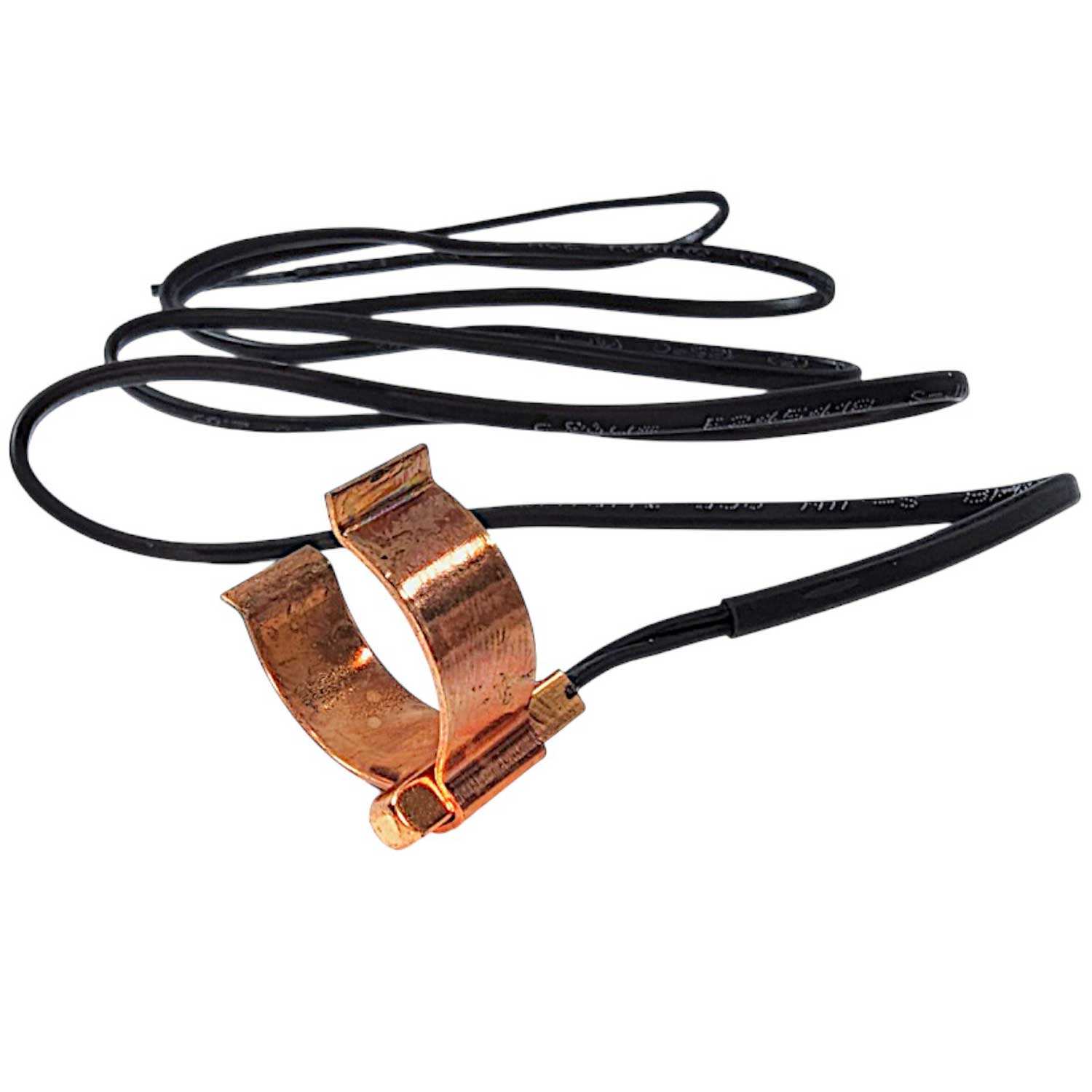

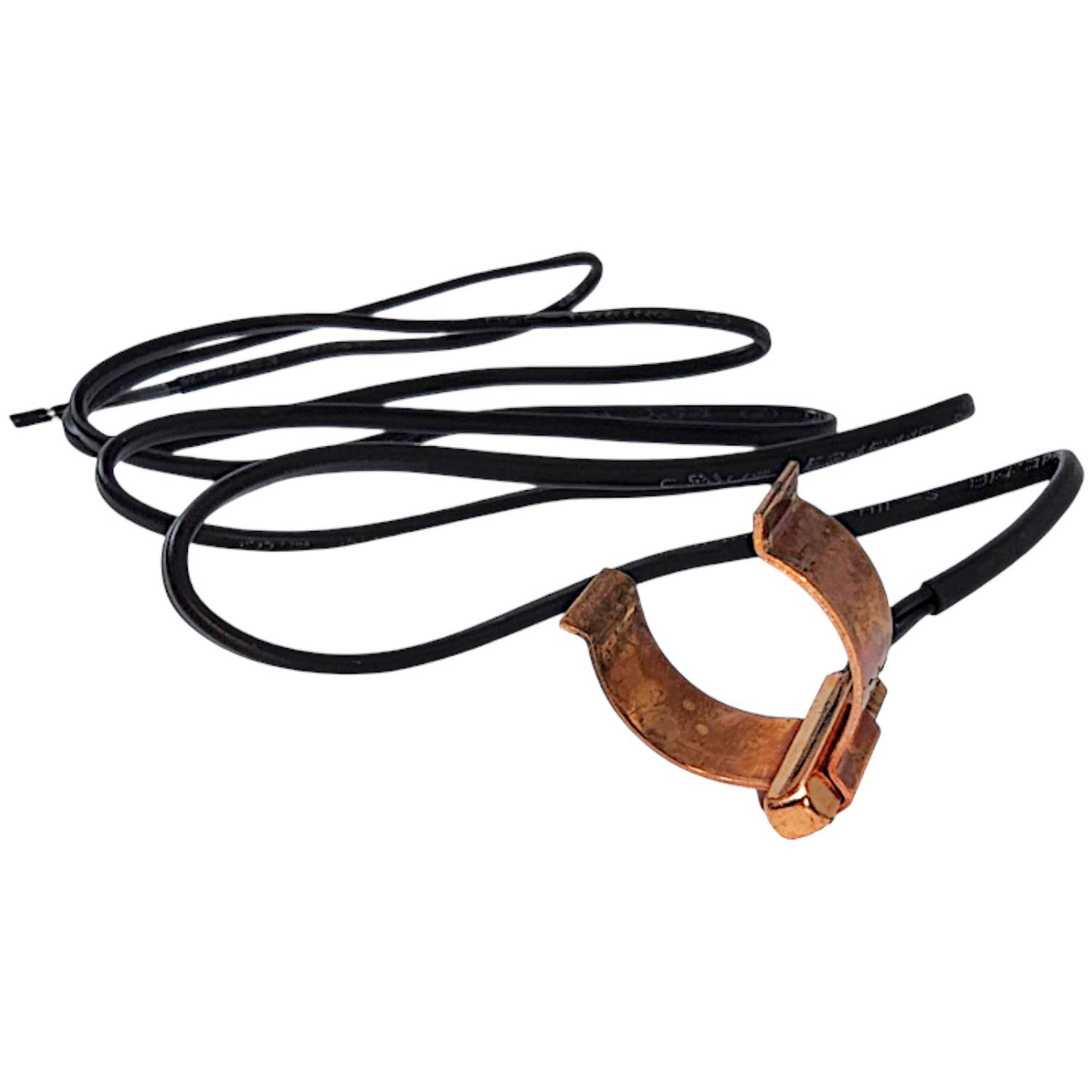

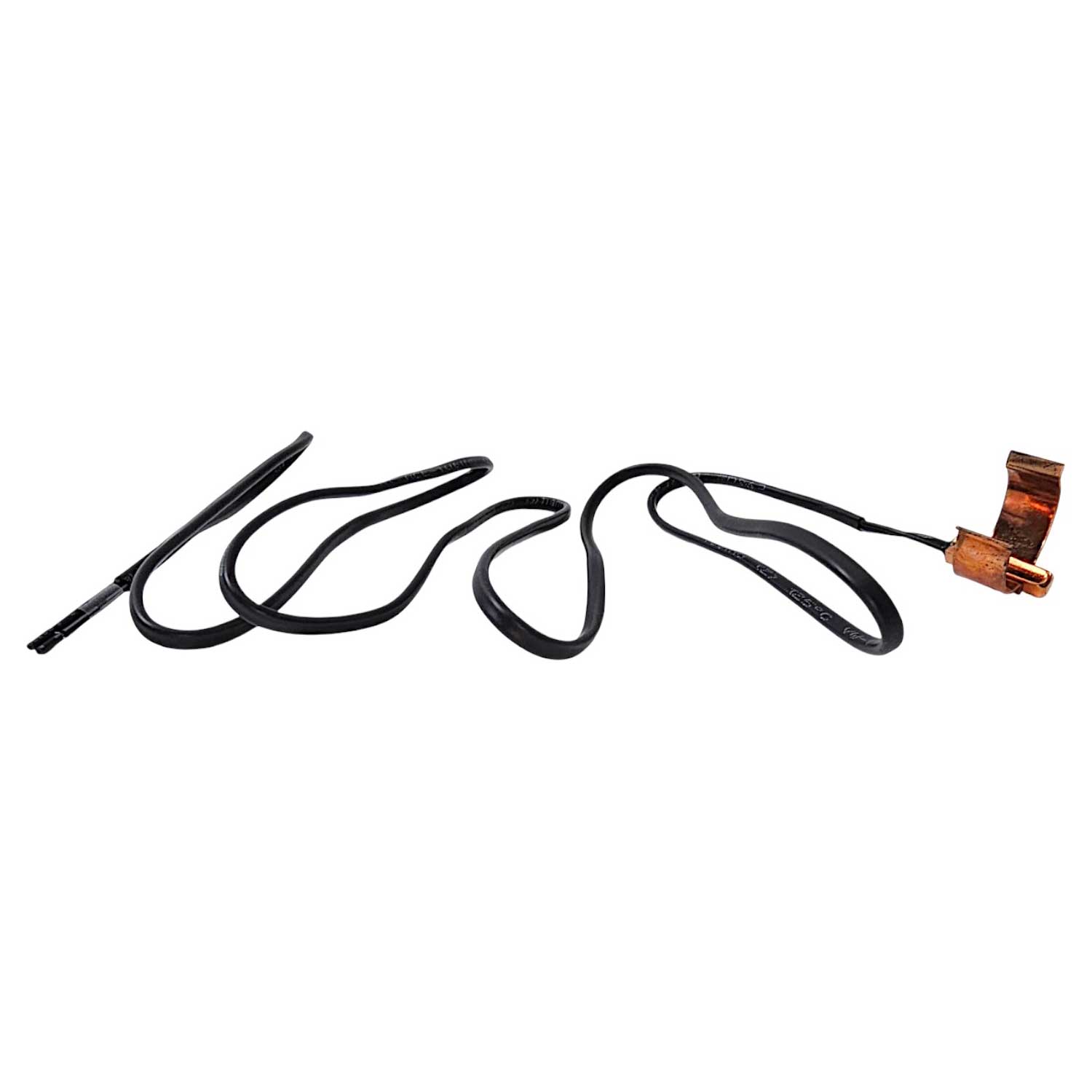

H000334 Raypak 5450, 6450, 8450; 9350, 9353, 10353, 10354, 10355 Heat Pump Coil Temperature Sensing 10K Thermistor Sensor 7/8 inch Tube
Fast Overview
- OEM Replacement: Genuine RAYPAK H000334 thermistor sensor in a 7/8′ Tube assembly.
- Sensor Type: 10K Thermistor used for coil/temperature sensing in Raypak heat pump pool heaters.
- Exact Fit For Models: 5450, 6450, 8450; 9350, 9353, 10353, 10354, 10355.
Key Features & Benefits of H000334
- Accurate Temperature Feedback: 10K thermistor design delivers stable, responsive readings to the control board for reliable heating performance.
- 7/8′ Tube Form Factor: Sized and formed to seat correctly in Raypak heat pump coil locations for proper thermal transfer.
- OEM Build Quality: Manufactured to Raypak specifications for fit, finish, and long-term durability—no guesswork.
- Plug-In Replacement: Designed to integrate with existing Raypak control electronics; no modifications required when replacing the same style sensor.
Confirmed Compatibility
Heat Pump Pool Heater Series:
- Classic/TI Series: 5450, 6450, 8450.
- Later Series: 9350, 9353, 10353, 10354, 10355.
Tip: If your unit uses a 3/8′ Tube thermistor, Raypak specifies H000333 instead. Verify tube size before ordering.
Technical Specifications
- Part Number: H000334 (Raypak OEM)
- Function: Coil / Thermistor Sensor (Temperature Sensing)
- Resistance Type: 10K Thermistor (NTC)
- Mechanical Size: 7/8′ Tube assembly for sensor placement in coil area
- Typical Use: Feeds coil/ambient temperature data to Raypak digital controls to regulate heat pump operation
Common Symptoms Of A Failing Sensor
- Heater runs erratically or won’t achieve set temperature
- Control panel shows sensor-related faults or shuts down under normal conditions
- Intermittent cycling despite correct water flow and chemistry
Installation Notes
- Safety First: Disconnect power at the breaker before service.
- Match Tube Size: Confirm your original sensor uses the 7/8′ Tube; some models/serial ranges use 3/8′ (H000333).
- Seal/Seat Properly: Install the sensor fully into the tube location per your model’s Illustrated Parts List (IPL).
- Controller Check: After installation, clear faults and verify correct temperature reading on the control.
What’s In The Box
- 1 × RAYPAK H000334 – Thermistor Sensor, 7/8′ Tube (OEM)
Cross-References & Also Known As
- Thermistor Tube 7/8′ – H000334 (Raypak Illustrated Parts)
- Sometimes listed as Coil Sensor 10K 7/8′ by distributors
Why Buy From A Raypak-Authorized Source
-
Genuine parts ensure compatibility with Raypak control logic and mechanical fitment, reducing callbacks and warranty issues.
