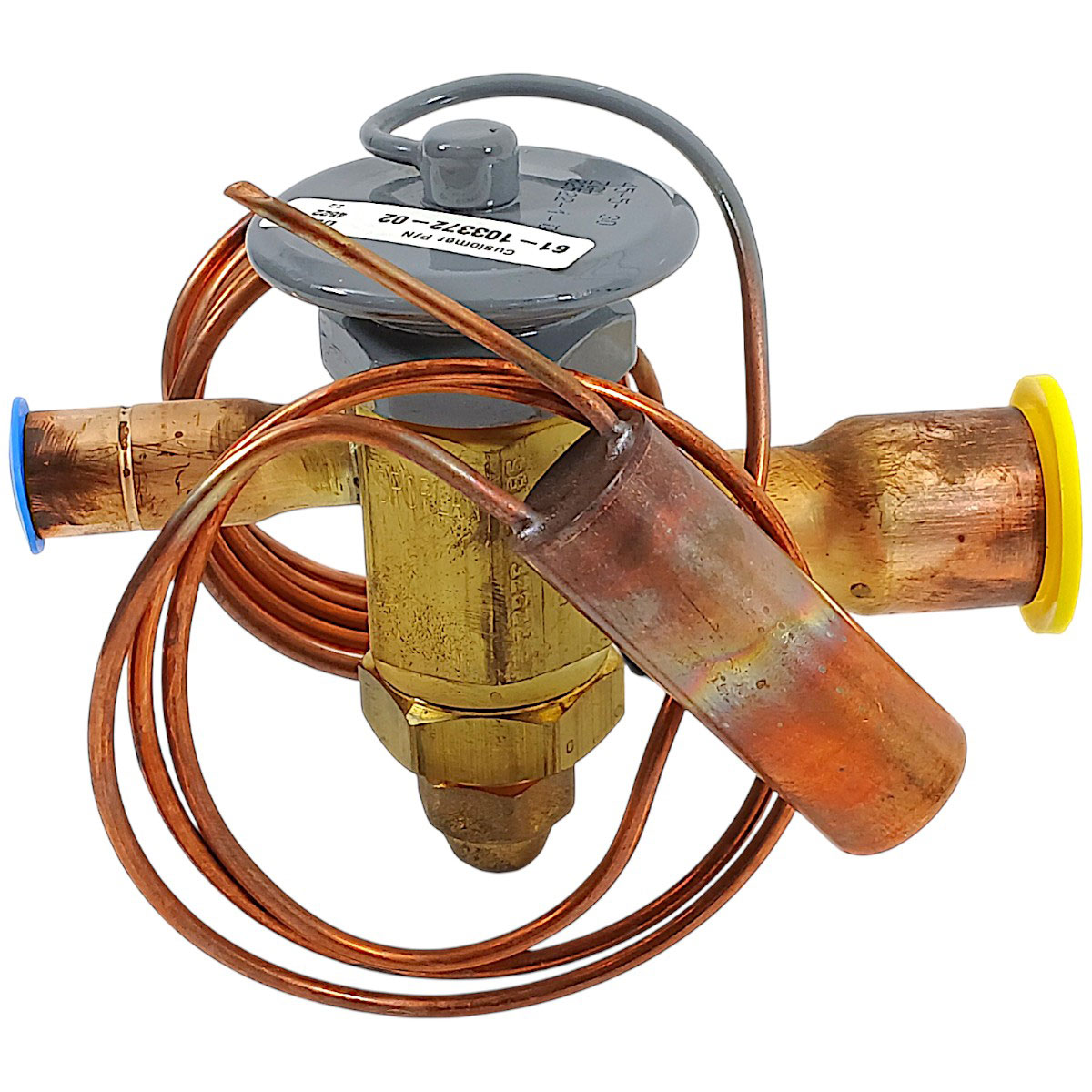

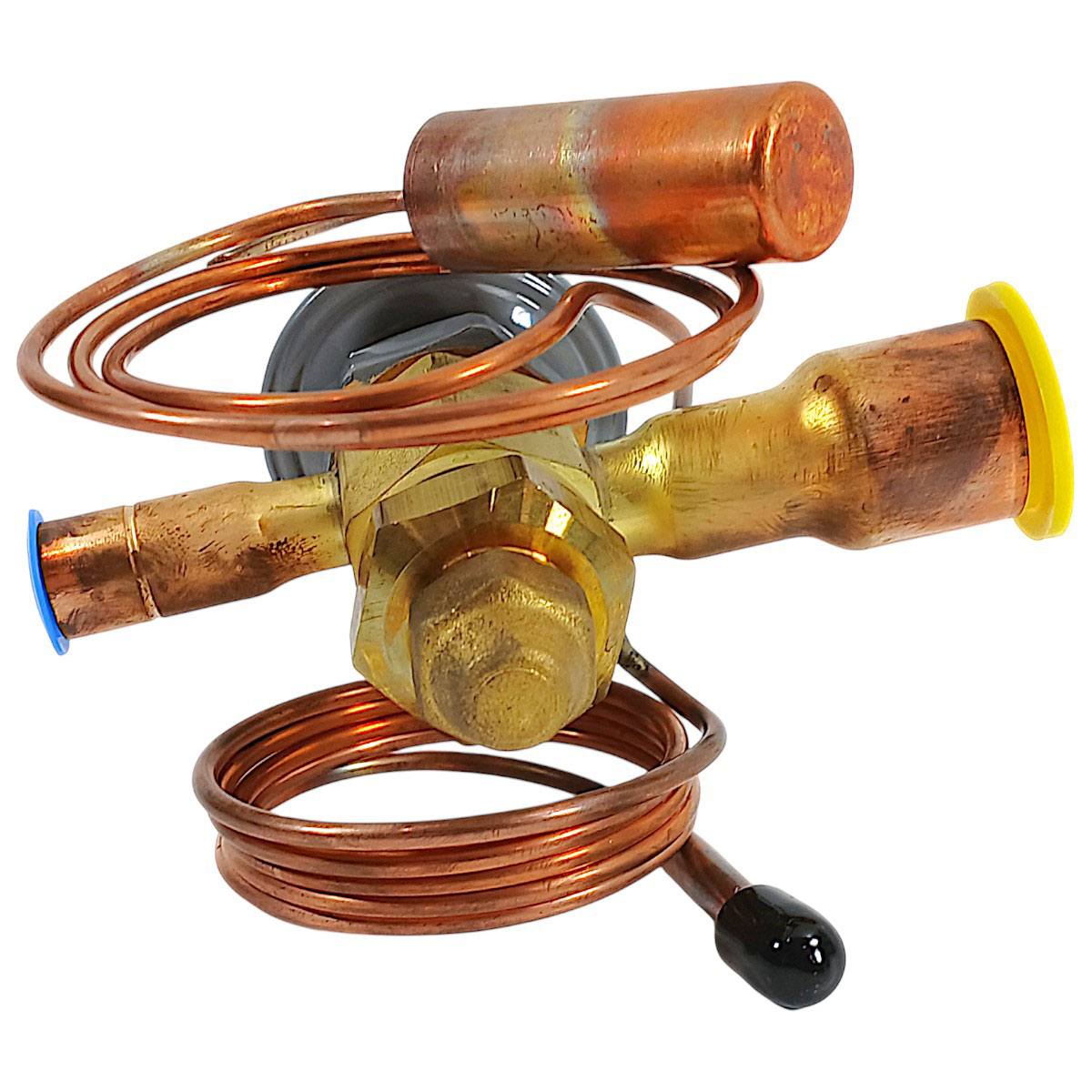

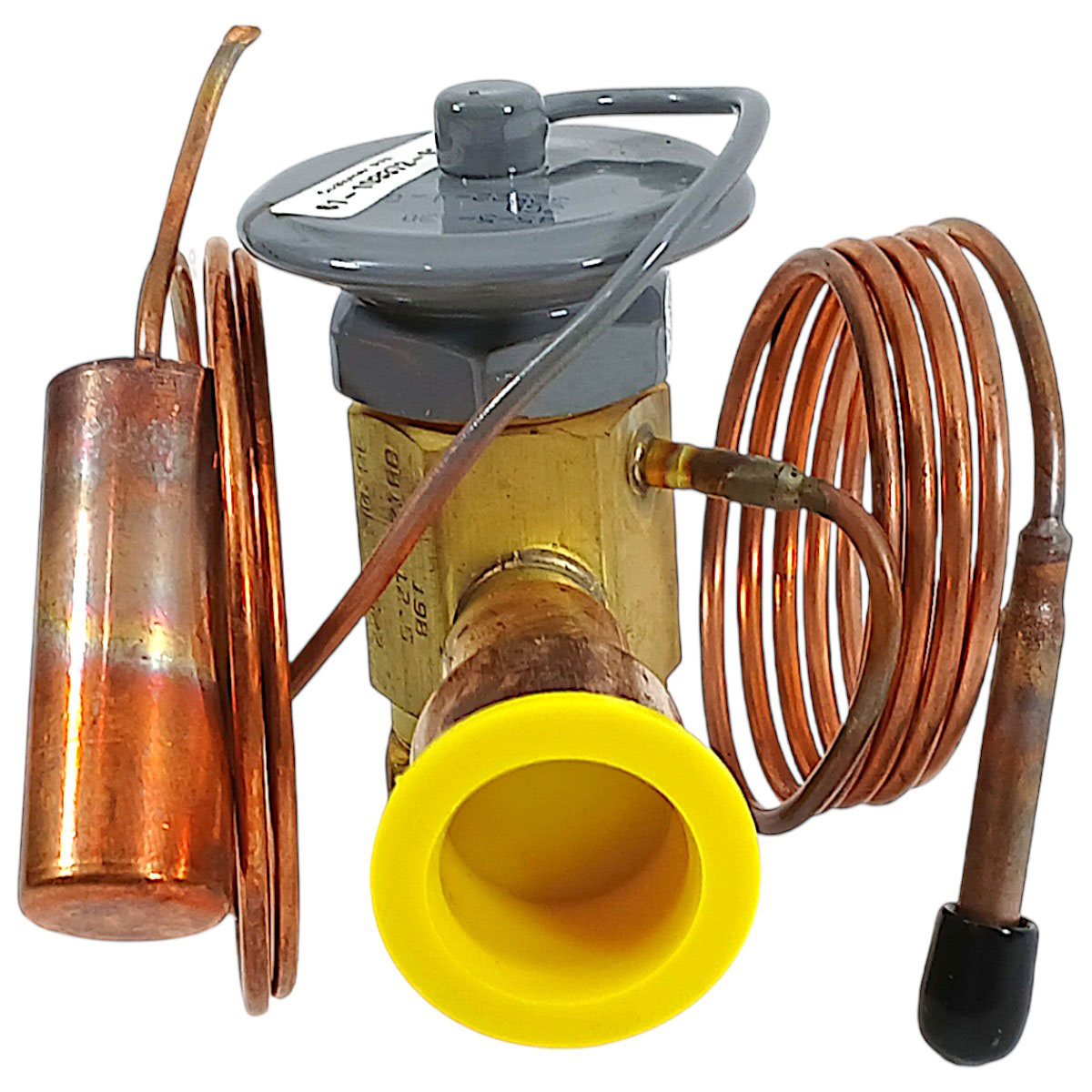

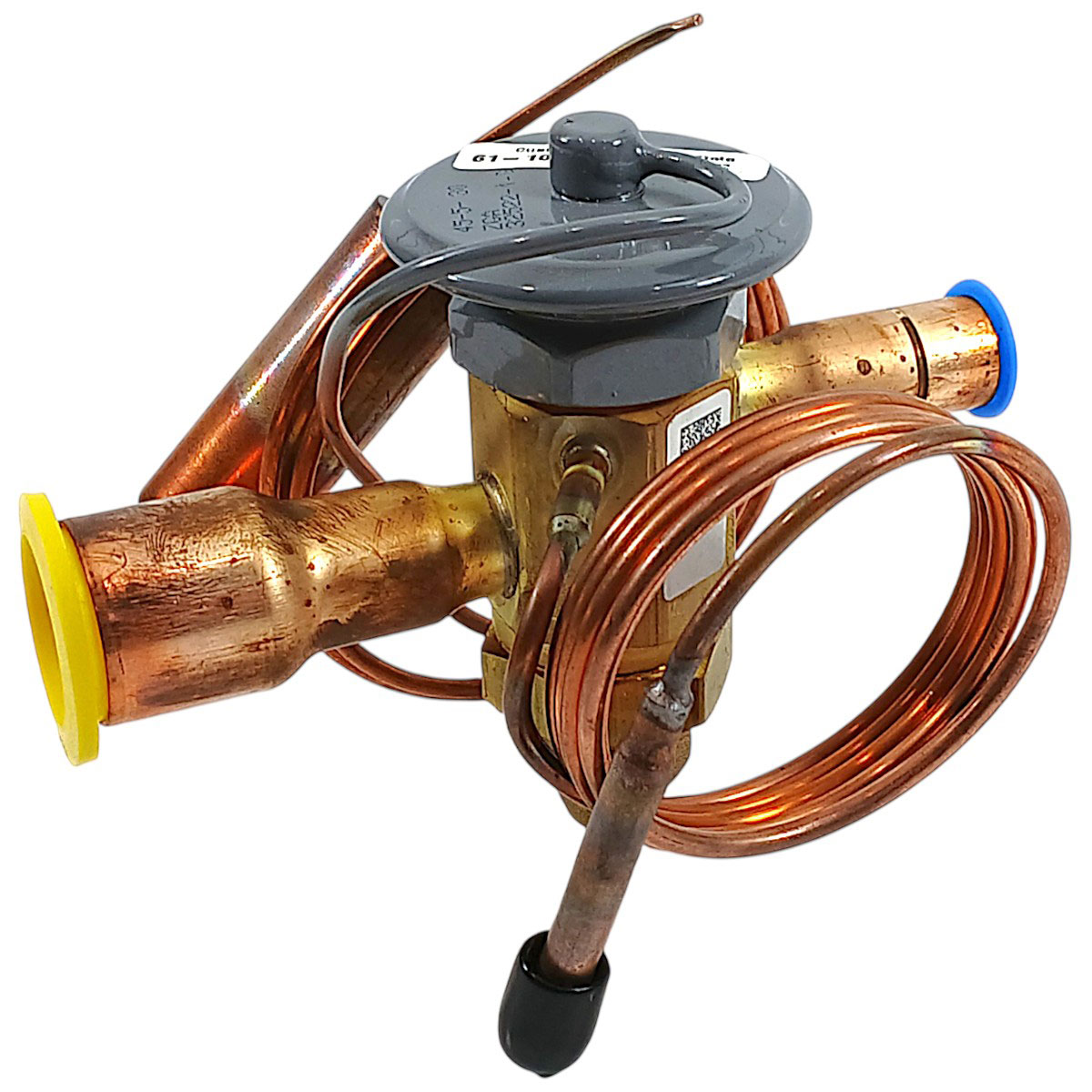

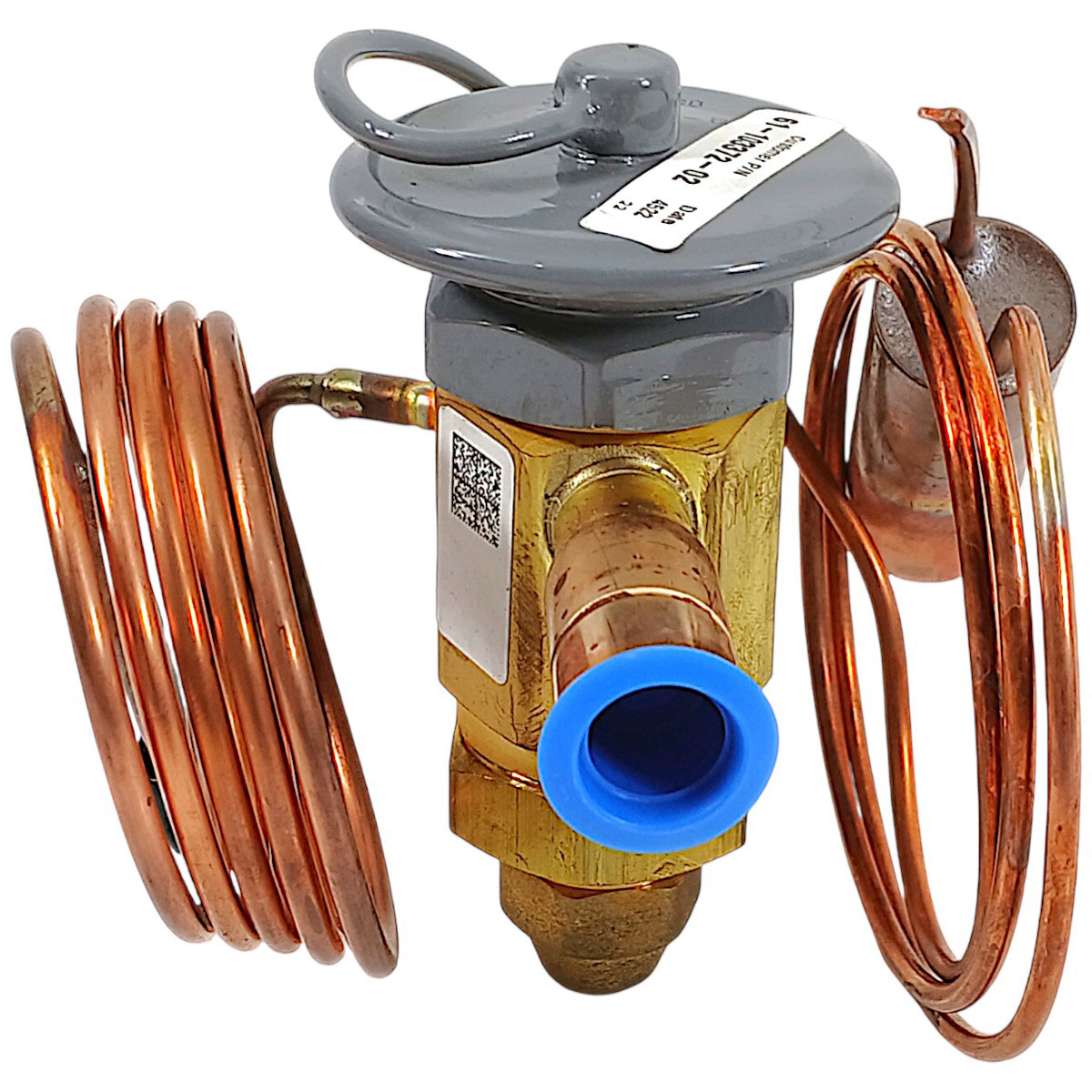

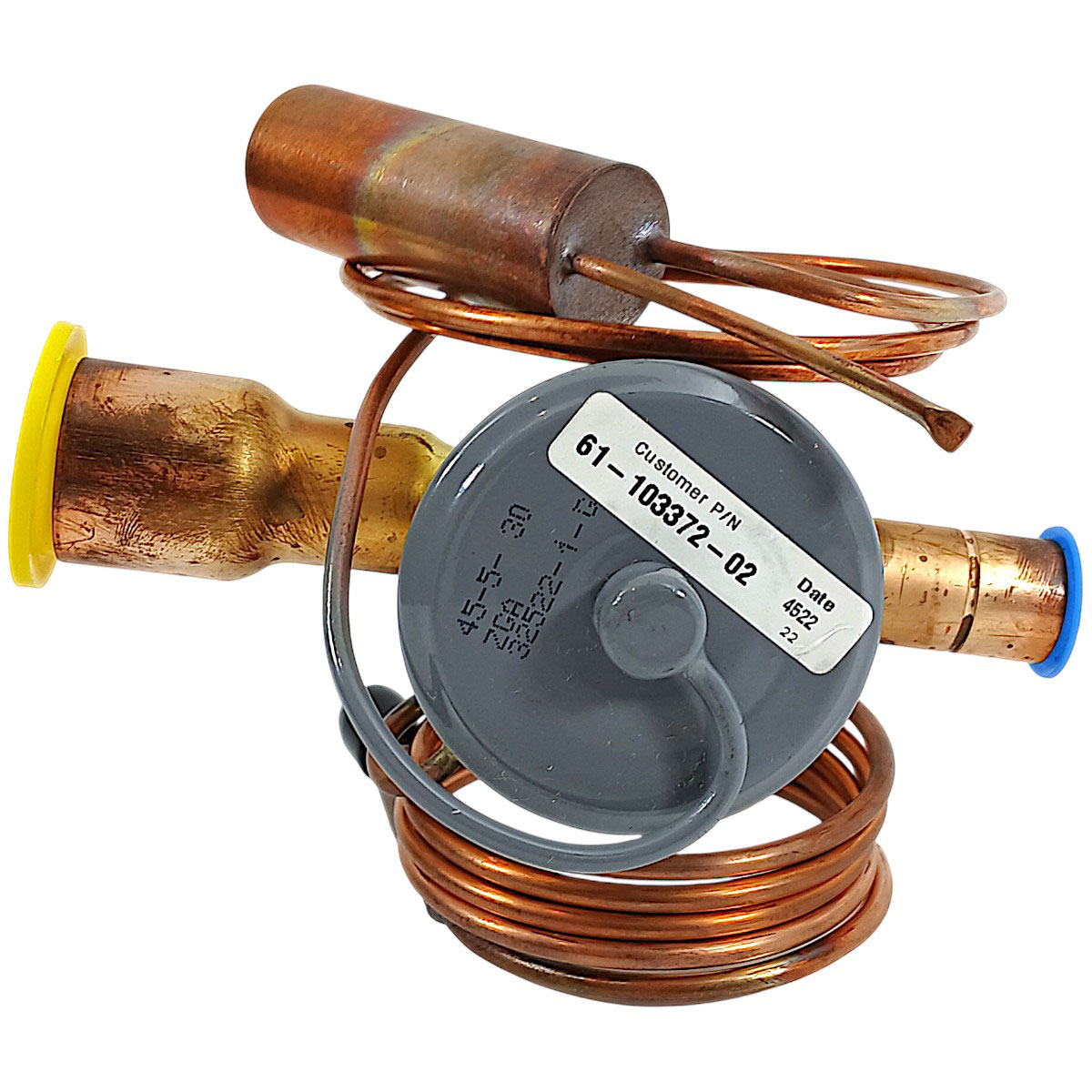

OEM Raypak H000077 12 Ton TX Valve regulates refrigerant flow for proper superheat, capacity control, and reliable heater performance.
The Raypak H000077 12 Ton TX Valve is an original equipment thermostatic expansion valve engineered to precisely regulate refrigerant flow within compatible Raypak pool and spa heating systems. This valve plays a critical role in maintaining correct superheat at the evaporator, ensuring efficient heat transfer, stable operating pressures, and consistent system capacity under varying load conditions.
Designed specifically for high-capacity 12-ton applications, the H000077 TX valve responds accurately to temperature and pressure changes, metering refrigerant based on real-time demand. Proper expansion valve operation is essential for protecting the compressor, preventing liquid floodback, and maximizing overall system efficiency. When the TX valve begins to fail, heaters may experience erratic temperature control, poor heating output, icing, high head pressure, or compressor stress.
Replacing a worn or malfunctioning expansion valve with the genuine Raypak H000077 restores factory-designed refrigerant control and ensures the heater operates within intended specifications. OEM construction ensures correct orifice sizing, calibrated response, and full compatibility with Raypak systems, eliminating the risks associated with aftermarket or improperly matched valves.
Key Features & Benefits
• Genuine OEM Raypak thermostatic expansion valve
• Rated for 12-ton capacity applications
• Precisely meters refrigerant flow based on load demand
• Maintains proper superheat and system balance
• Helps protect compressor from liquid floodback
• Improves heating efficiency and system reliability
• Copper construction with factory-calibrated sensing bulb
• Direct replacement for original factory-installed valve
Compatible Models / Fits These Models
• Raypak commercial pool heaters using 12-ton refrigeration circuits
• Raypak heat pump systems specified for 12-ton TX valve applications
• Applicable Raypak models originally equipped with H000077 expansion valve
(Compatibility should always be verified by model and serial number prior to ordering.)
Installation & Important Notes
• Professional installation by a qualified HVAC or pool equipment technician is strongly recommended
• System refrigerant must be properly recovered before replacement
• Correct bulb placement and insulation are critical for accurate valve operation
• System should be evacuated and recharged to manufacturer specifications after installation
Part Number Section
Raypak Part Number: H000077
UPC: 840891031055
