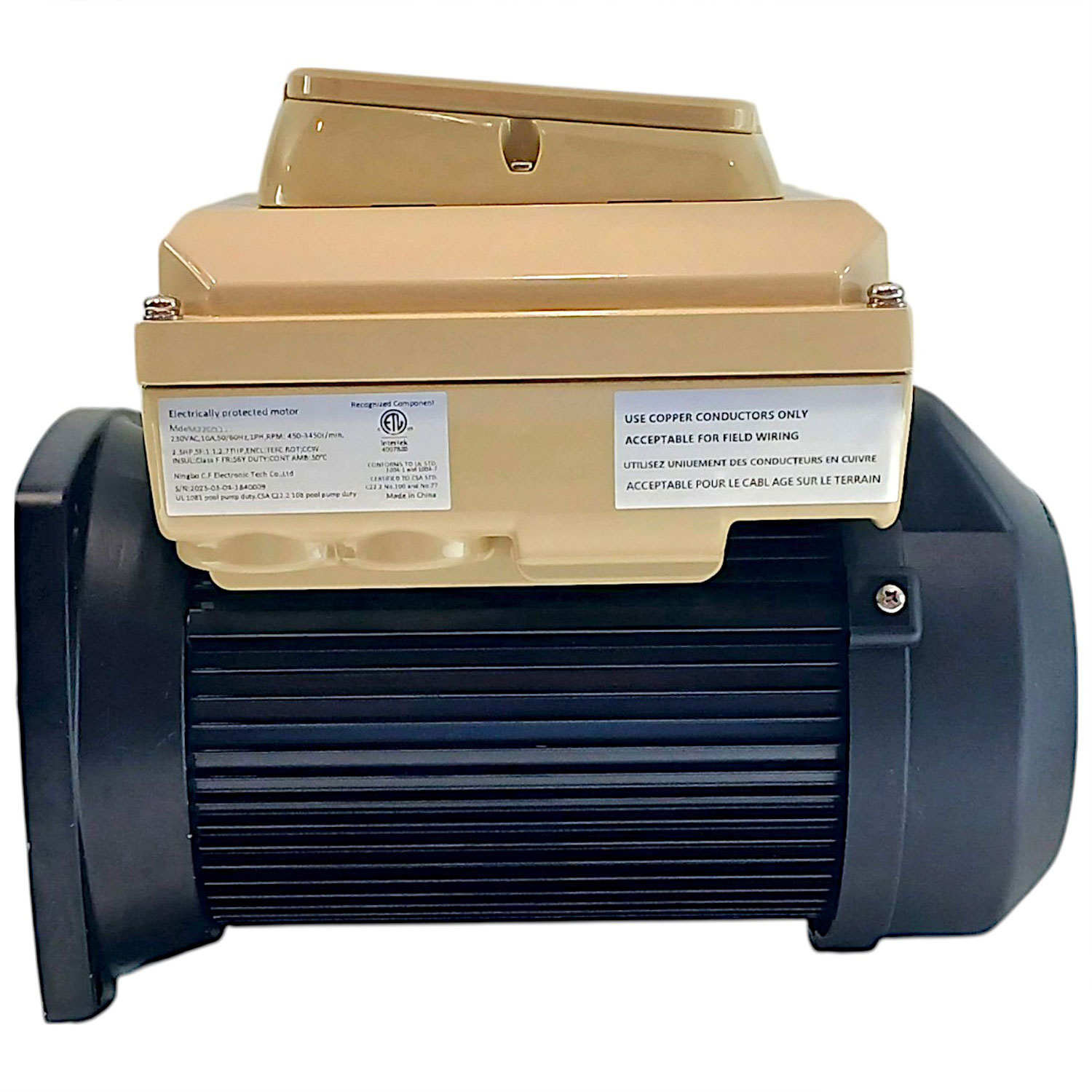

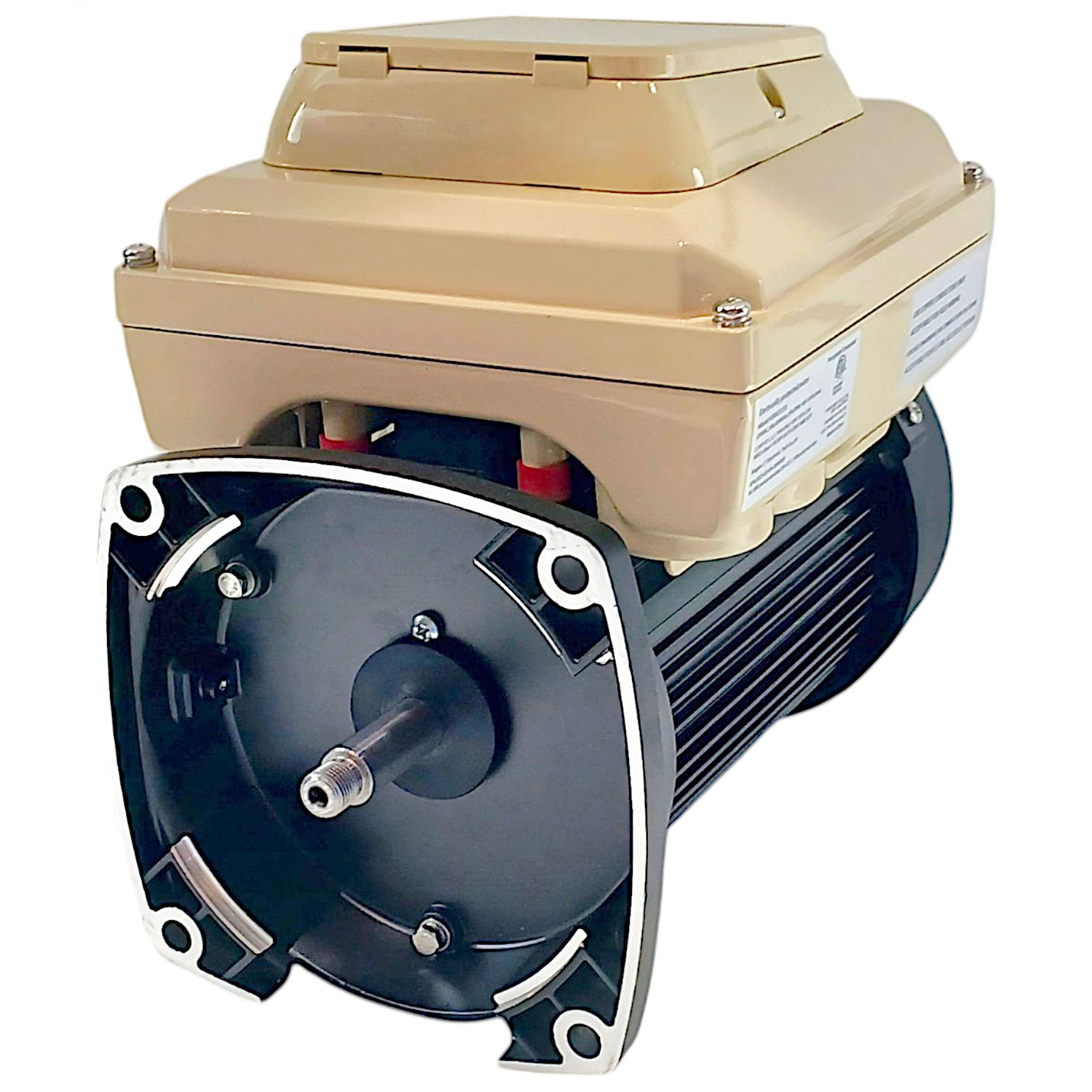

3HP VS 220V Variable Speed Square Flange High-Efficiency, High-Performance, Programmable, Automation-Ready Motor For Pentair® WhisperFlo® Pumps that Used 355016S and 071317S Motors
The 3HP Variable Speed Replacement Aftermarket Motor For Pentair® WhisperFlo® Pumps is a 3.0 HP class premium variable speed pool pump motor designed for high-efficiency, low-noise operation with maximum programming flexibility. It features an integrated user interface and advanced scheduling options, making it ideal for both residential and commercial pool applications. Built to support pool automation systems and protect against extreme temperatures, moisture, and voltage fluctuations, the delivers superior reliability and control.
3HP Variable Speed Square Flange Motor’s Key Features
- True Variable Speed Control: Adjustable from 750–3450 RPM in 10 RPM increments for precise flow optimization
- Fully Integrated Digital Interface: Onboard LCD display with intuitive keypad for programming, monitoring, and real-time control
- Customizable Scheduling: Supports up to 4 custom speeds per day with programmable start time and duration
- Quick Clean Mode: Instantly runs high-speed cleaning or backwash cycles without affecting the main schedule
- Freeze Protection: Activates circulation automatically if ambient temperature drops below 40°F
- Compatible with Automation Panels: Accepts external relay signals (IN1–IN4) for remote speed control
- Quiet Operation: Optimized motor and fan design reduce noise emissions, perfect for residential installs
- Model:VSM22CSQ
3HP Variable Speed Square Flange Motor’s Electrical Specifications
- Input Voltage: 230 VAC single-phase
- Operating Frequency: 50/60 Hz
- Min/Max Operating Voltage: 207V – 254V
- Full Load Current: 10.0 Amps
- Input Power Factor: 95% to 99%
- Peak Inrush Current: Limited to <150A for <5 milliseconds
3HP Variable Speed Square Flange Motor’s User Interface & Controls
- Speed Buttons (1–4): Run or program individual speeds
- Display Modes: Toggle between RPM, Time, Duration, and Power (Watts)
- Display Button: Navigate through display options and set 12/24-hour clock
- Mode Select: Choose between Manual and Schedule mode
- Start/Stop Button: Master control to activate or pause operation
- Quick Clean Button: Immediate manual override (default 3450 RPM)
- Arrow Keys (+/- and < >): Adjust speeds, time, and durations
- LED Feedback: Visual indicators confirm active mode and editable parameters
3HP Variable Speed Square Flange Motor’s Programming Options
- Speed Priority Logic:
SPEED 1 > SPEED 2 > SPEED 3 > SPEED 4
(Total daily runtime limited to 24 hours) - Default Schedule (out of box):
- SPEED 1 – 3000 RPM – 2 hrs
- SPEED 2 – 1500 RPM – 10 hrs
- SPEED 3 – 2500 RPM – 2 hrs
- SPEED 4 – 1000 RPM – 4 hrs
- Priming Speed: Default 3450 RPM for 5 min (adjustable)
- Freeze Protection Speed: Default 1000 RPM (adjustable 750–3450 RPM)
3HP Variable Speed Square Flange Motor’s Applications
- Inground residential pools
- High-capacity filtration systems
- Pools using automation systems
- Pool owners seeking DOE-compliant energy efficiency and quiet performance
