WhisperFlo Swimming Pool Pump Replacement Variable Speed Pump Kit 110V/220V 2HP

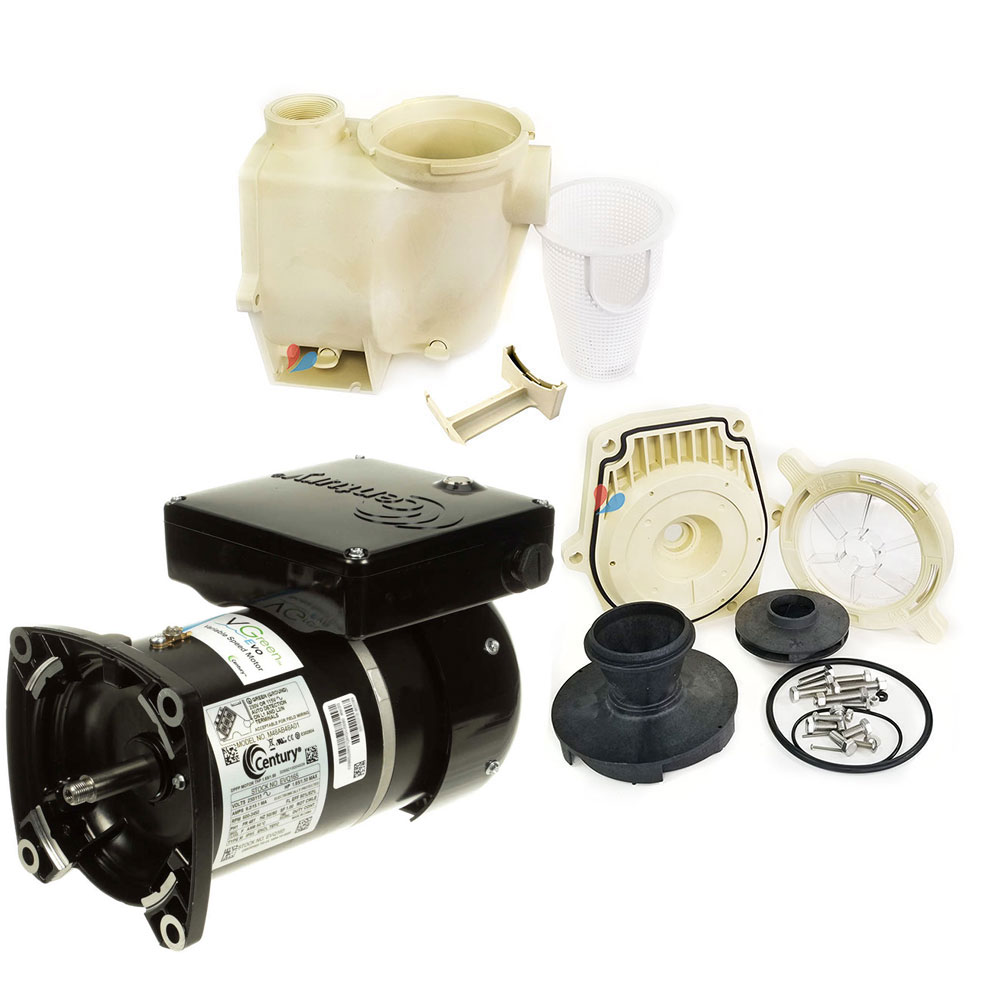

The kit includes a WhisperFlo SuperFlo Challenger Pump Variable Speed Motor 2.25 THP and WhisperFlo Pump Wet Fluid End.The kit includes all the necessary components to assemble a variable speed pump replacement for 2HP Pentair WhipserFlo Swimming Pool Pump.The kit ships in 2 shipments – Motor and the Wet Fluid End.Does not come with and assembly manual.Motor Specifications:
- Variable Speed Operation (600-3450 RPM)
- Simplified Single Button User Interface
- Dual Voltage 230/115 VAC, with Automatic Voltage Detection
- Freeze Protection
- Easy to Install
- TEFC Design
- Class F Insulation
- 50°C Ambient
- 50/60 Hz
Nameplate Specifications
| Output HP: | 2.25/1.50 Hp | Output KW: | 1.7 kW |
| Frequency: | 60 Hz | Voltage: | 230/115 V |
| Current: | 13.5/17.4 MAX A | Speed: | 600-3450 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Continuous | Insulation Class: | F |
| Frame: | 48Y | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | Automatic | Ambient Temperature: | 50 °C |
| UL: | Recognized | CSA: | N |
| CE: | Y | Number of Speeds: | VAR |
Technical Specifications
| Rotation: | Clockwise Lead End | Mounting: | Round |
| Drive End Bearing: | Ball | Opp Drive End Bearing: | Ball |
| Frame Material: | Rolled Steel | Shaft Type: | Threaded |
| Frame Length: | 8.68 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 1/2-20 THREAD in |
