IWCLC300W Jandy® Infinite WaterColors LED Light Controller Transformer 300W

IWCLC300W Jandy® Infinite WaterColors™ Swimming Pool and Spa Nicheless and Niched LED Light Controller Transformer 300W

Jandy Infinite WaterColors LED Lights Controller with 300W 14VAC transformer. Requires AquaLink RS (rev Y+) and iAquaLink app control; powers and controls Jandy Infinite WaterColors LED pool/spa lights via RS-485.

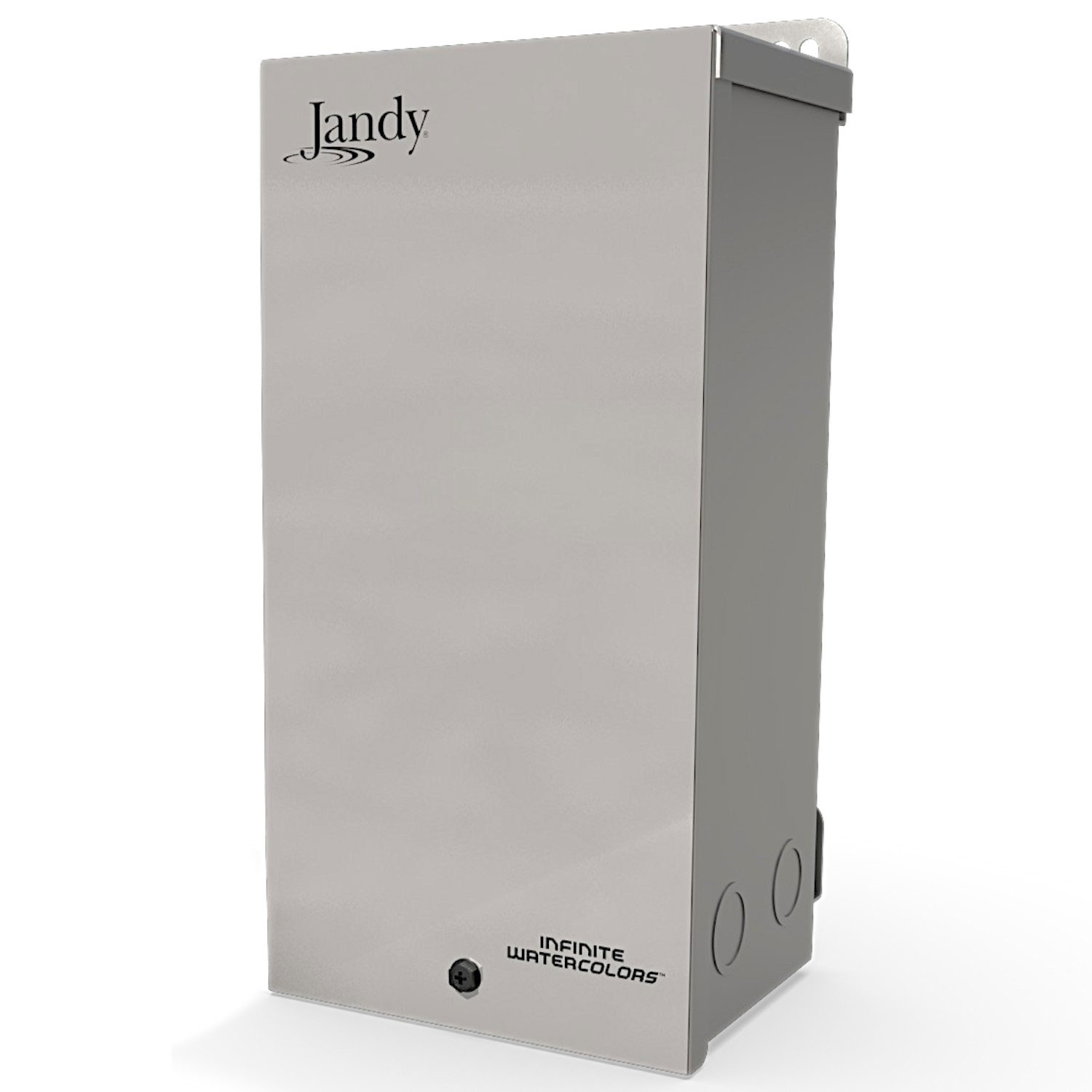

The Jandy Infinite WaterColors LED Lights Controller (IWCLC300W) is the dedicated low-voltage power and control center for Jandy’s Infinite WaterColors LED lighting system. It delivers a max 300W at 14VAC through an isolating transformer and communicates over RS-485 with AquaLink RS (revision Y or later) so you can control lighting from your iAquaLink app (and voice via Alexa when used with the supported AquaLink setup).

This controller is purpose-built for Jandy Infinite WaterColors lights and must be used with them; the lights are not designed to operate from other transformers

Key features

• Integrated 300W isolating transformer (14VAC): Input 120VAC, 60Hz, 2.75A; Output 14VAC, 60Hz, max 300W. Enclosure Type 3RX with ten 1/2–3/4 in. knockouts.

• AquaLink RS + iAquaLink control: RS-485 connection to AquaLink RS (rev Y or later) enables app control; Alexa voice control available through supported iAquaLink/AquaLink integrations.

• System capacity: AquaLink RS supports up to 4 of these light controllers per system. Each controller communicates with up to 16 (15W) or 9 (25W) Jandy Infinite WaterColors lights; keep total connected light wattage ≤ 240W per controller.

• Purpose-built for Infinite WaterColors lights: Use only with Jandy Infinite WaterColors niched or nicheless LED lights; not for third-party transformers.

• Safety and compliance: Install on a GFCI-protected branch circuit, bond per NEC/CEC, and power directly from a breaker (do not wire to a relay).

What’s included

• Infinite WaterColors LED Light Controller enclosure with 300W transformer (IWCLC300W)

• Factory-wired RS-485 harness and terminal bar

• Mounting brackets (pre-installed) and hardware

• Installation & Operation Manual (H0669700 Rev J)

Technical specifications

• Input power: 120VAC, 60Hz, 2.75A

• Output power: 14VAC, 60Hz, max 300W

• Per-controller light limit: up to 16 (15W) or 9 (25W) Jandy Infinite WaterColors lights; total connected light wattage ≤ 240W

• Enclosure: Type 3RX; 10x knockouts (1/2–3/4 in.)

• Control/comm: RS-485 to AquaLink RS (rev Y or later)

• Mounting/location (pool/spa): at least 4 in. above ground, 8 in. above water level, and 4 ft from pool/spa edge (US); follow local code.

Compatibility

• Lights: Jandy Infinite WaterColors Nicheless and Niched LED Lights (e.g., IWC15W100, IWCP series).

• Accessories: Jandy Infinite WaterColors Smart Sync LED Adapter (for specific compatible devices; see adapter manual).

Note: Infinite WaterColors lights are designed to be powered and controlled only by this Jandy controller; they will not operate from other transformers.
